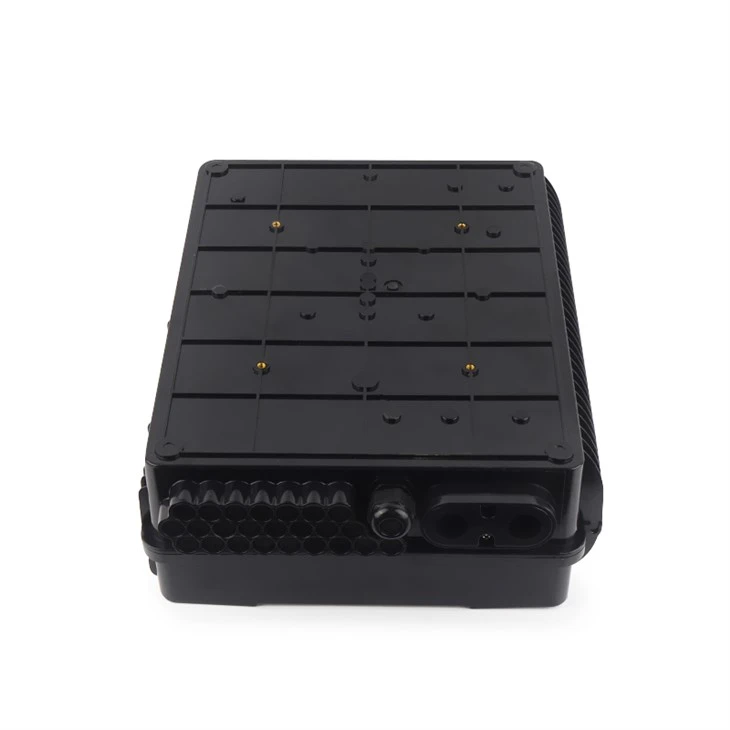

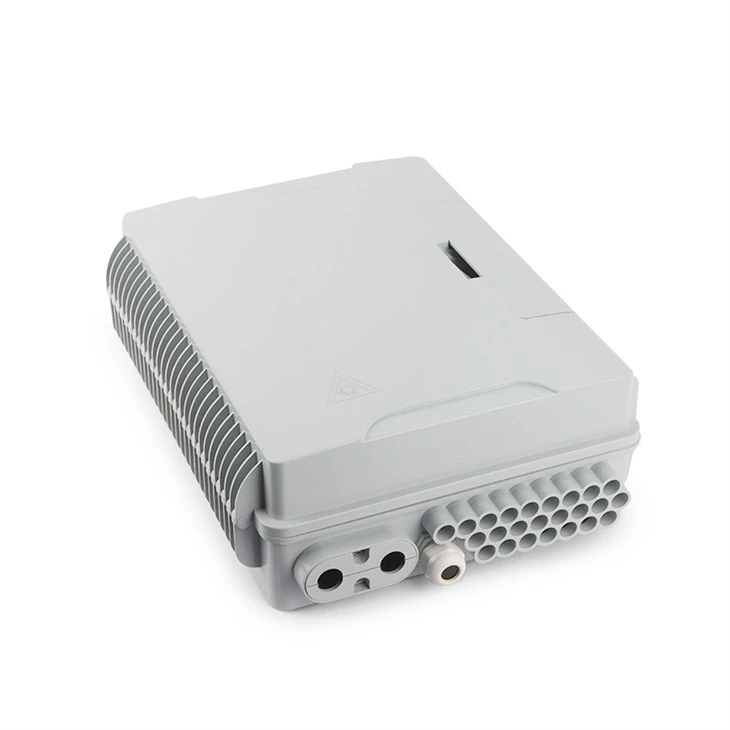

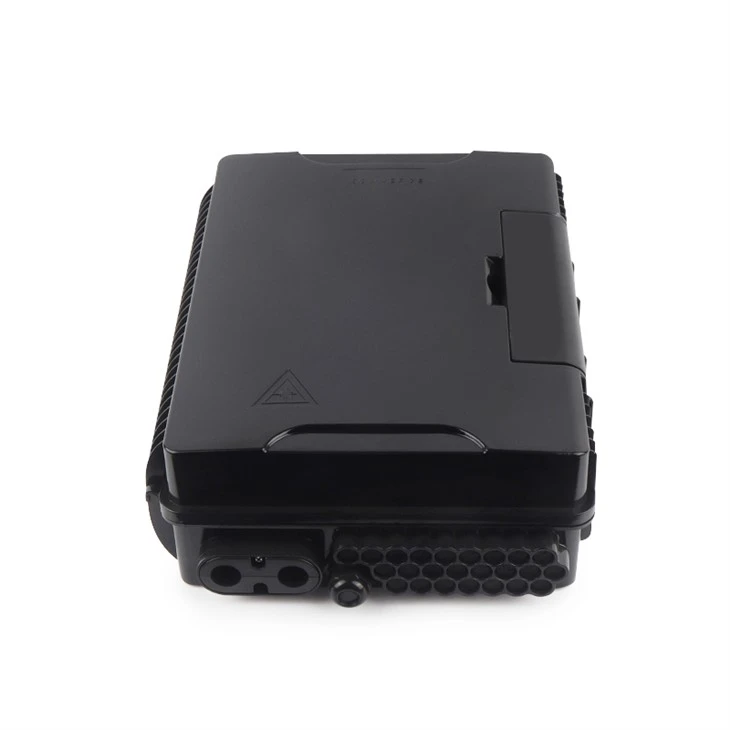

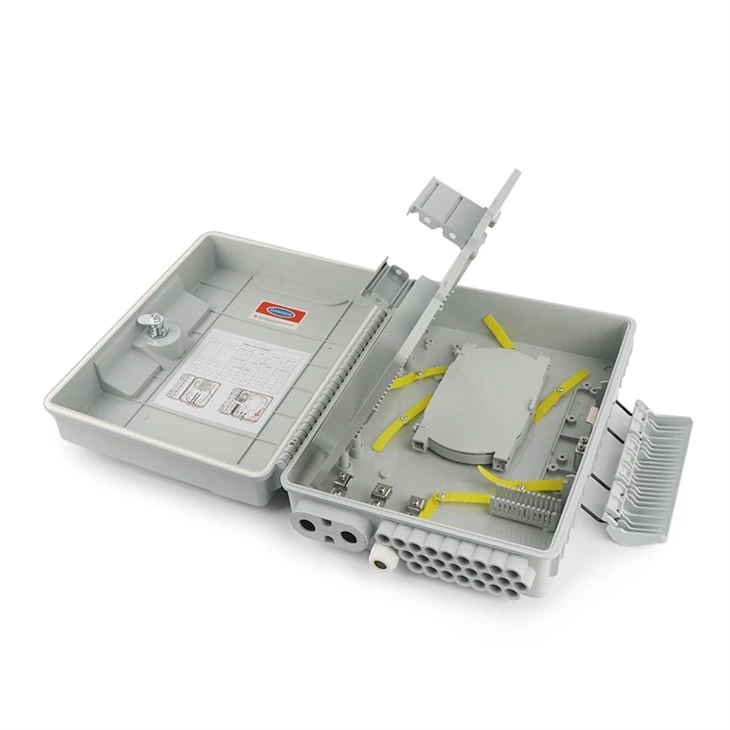

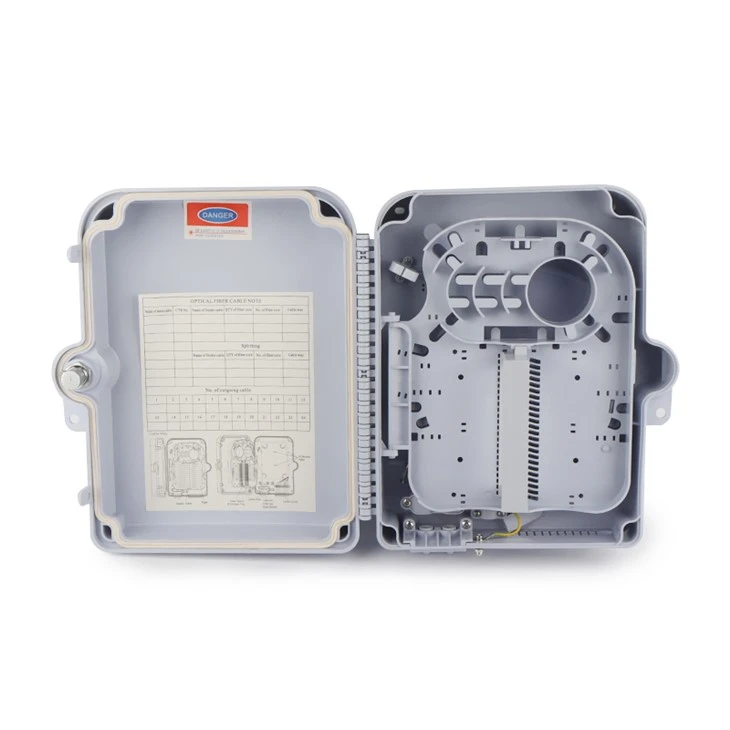

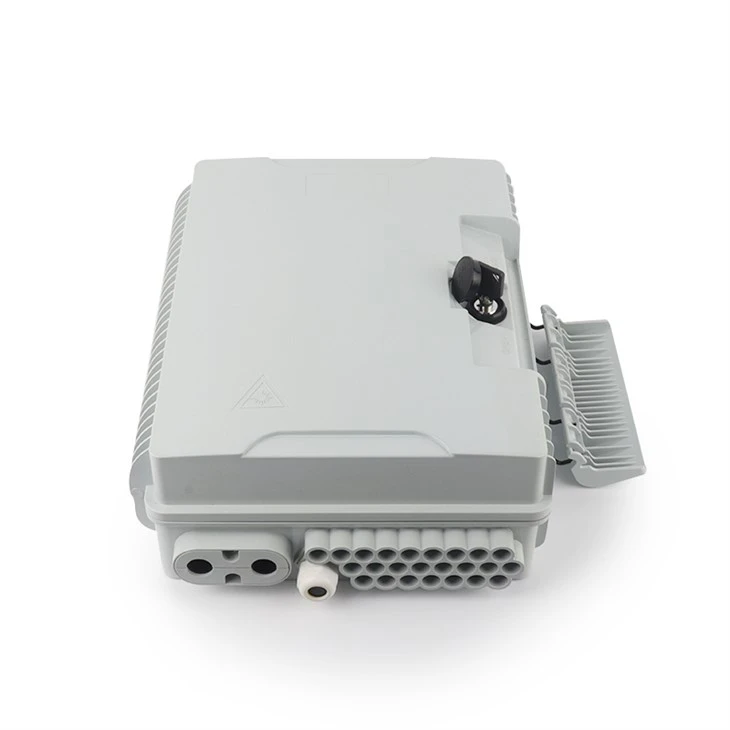

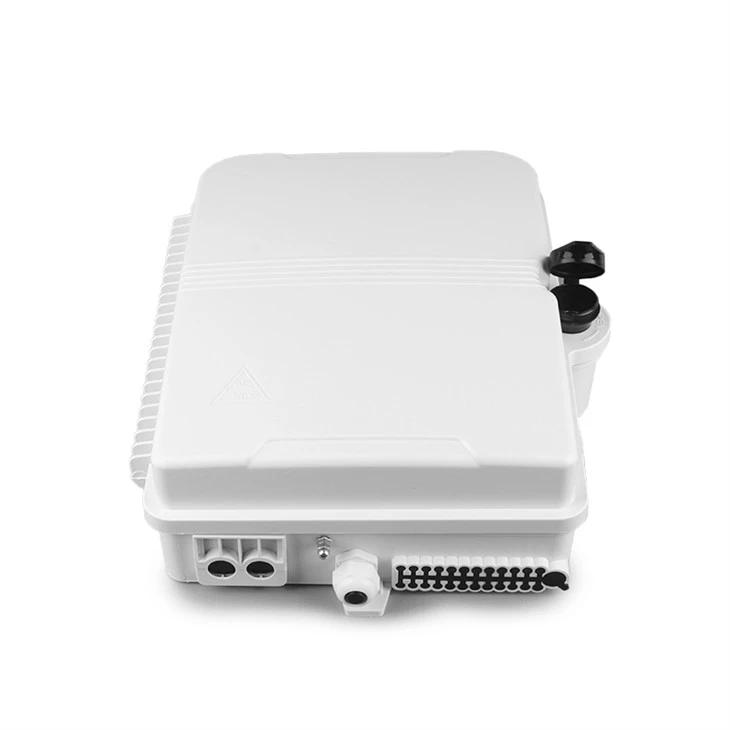

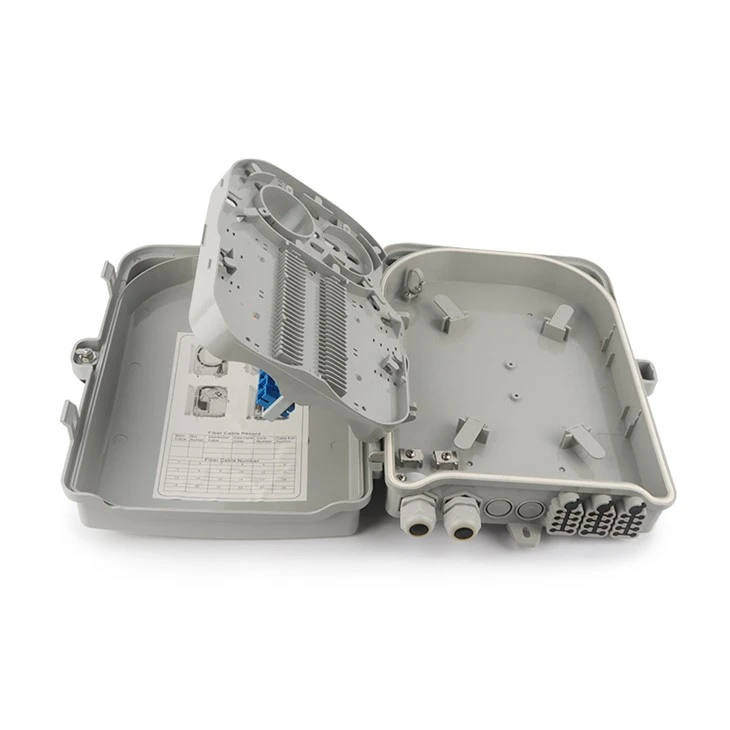

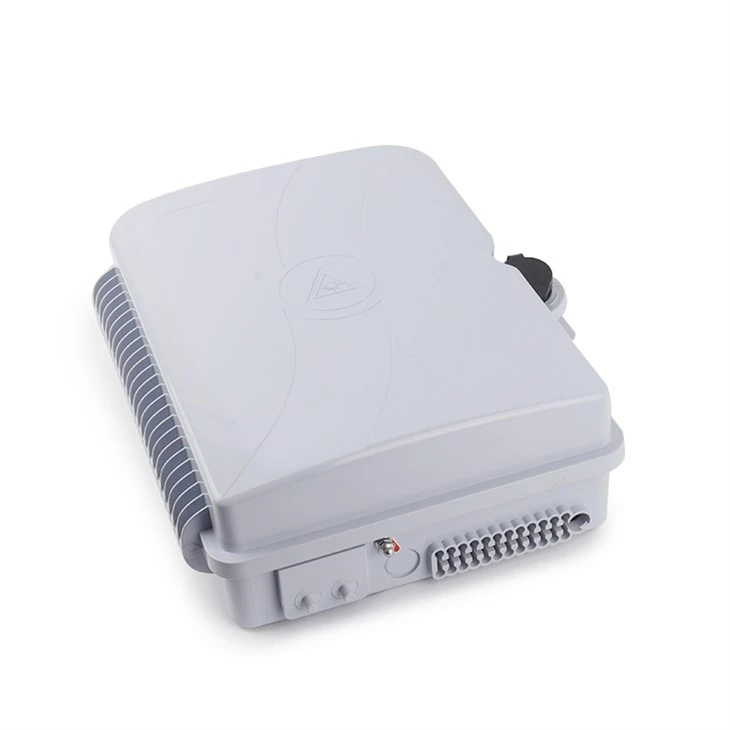

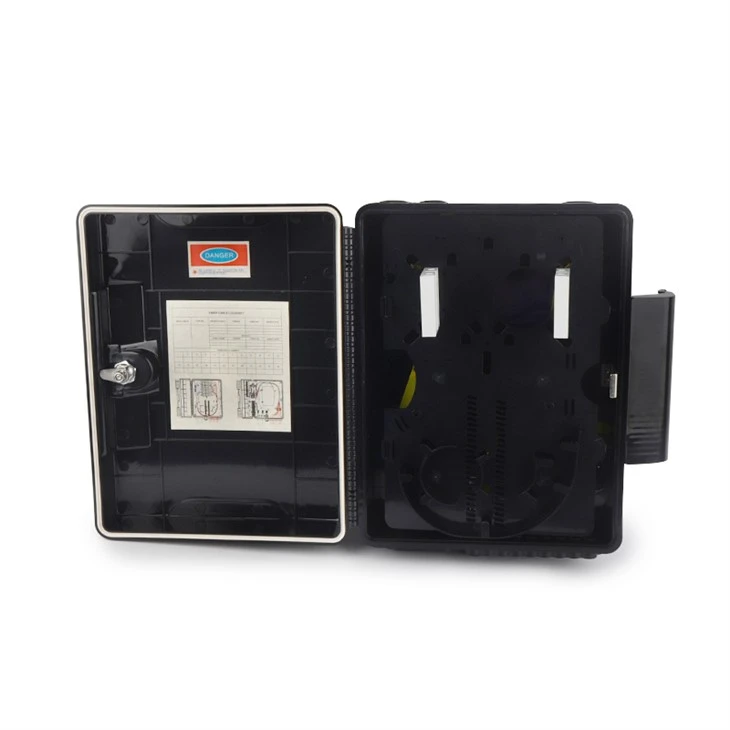

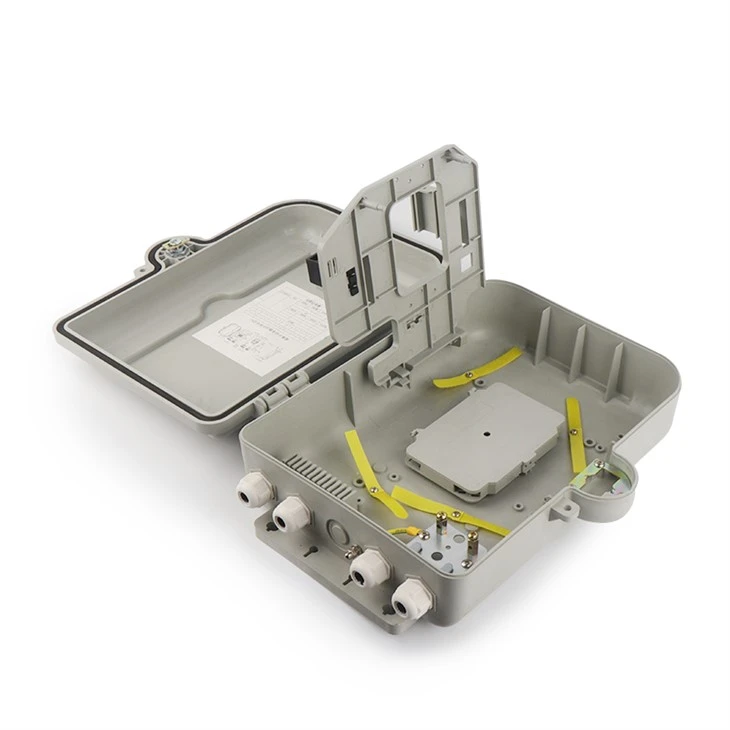

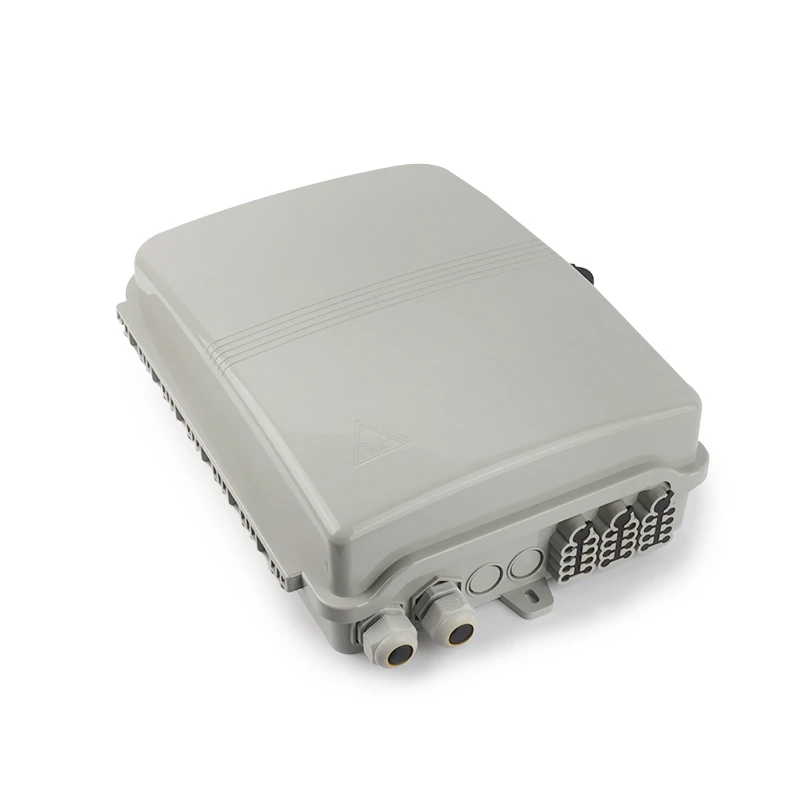

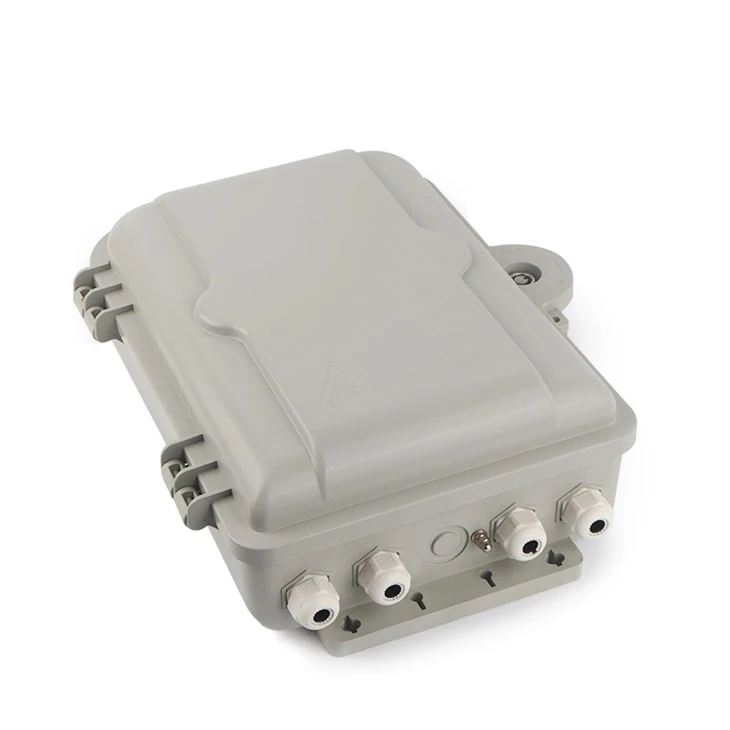

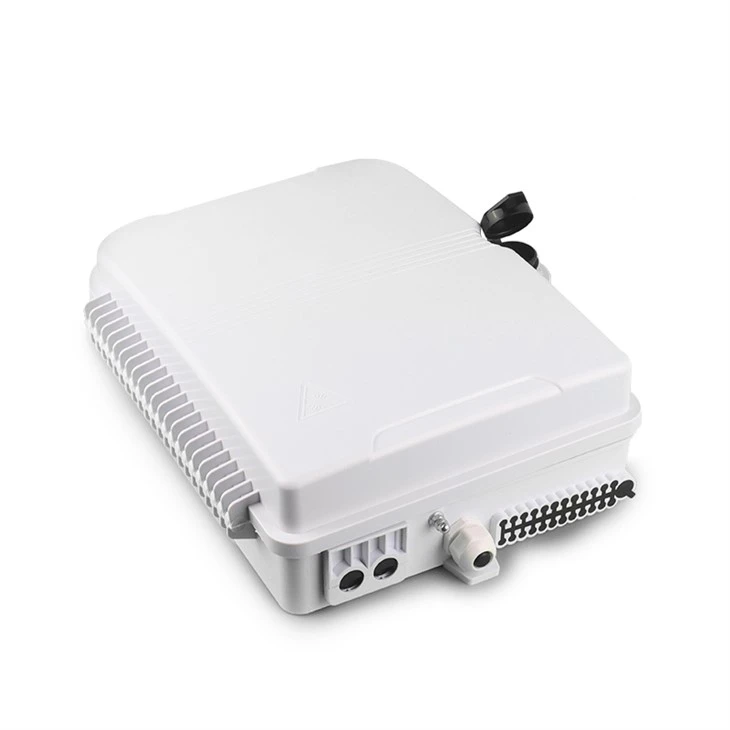

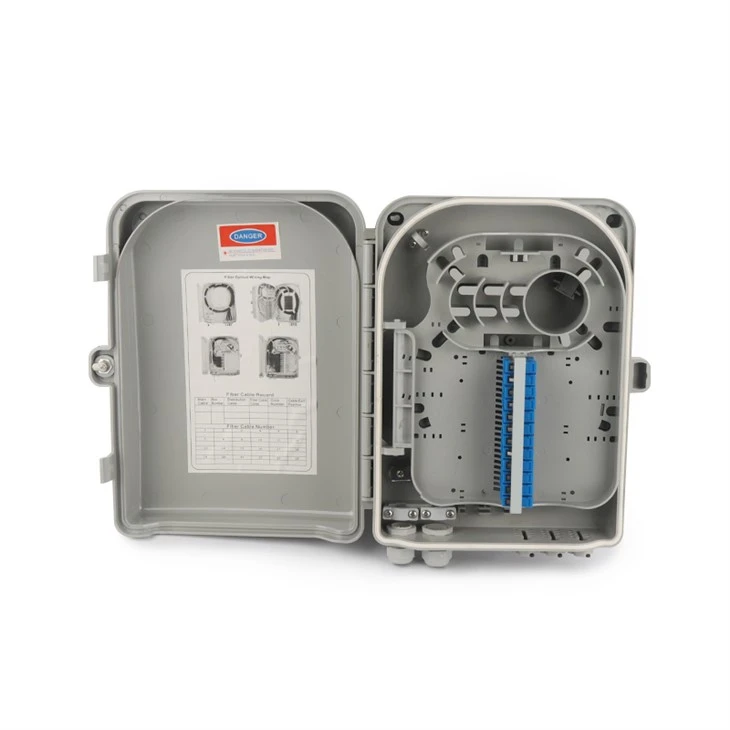

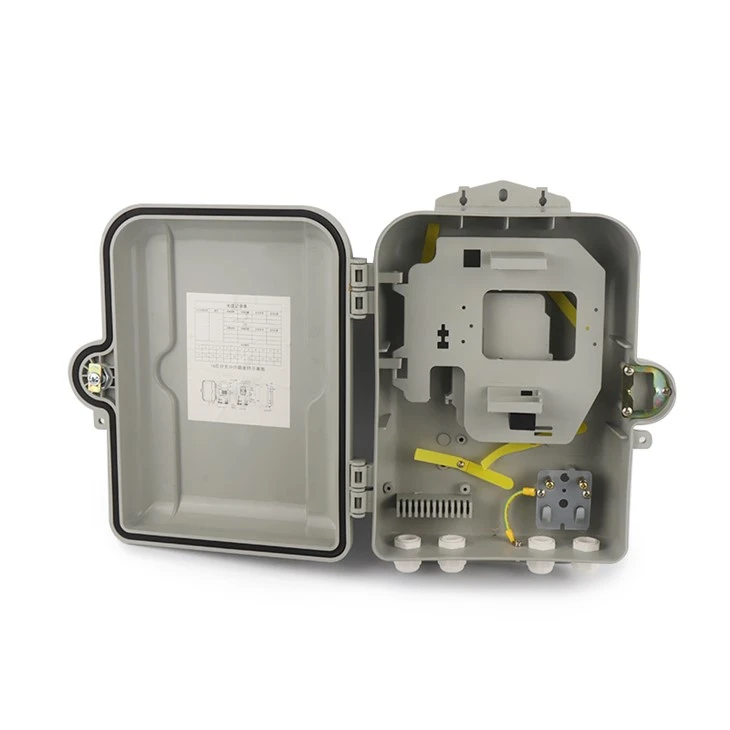

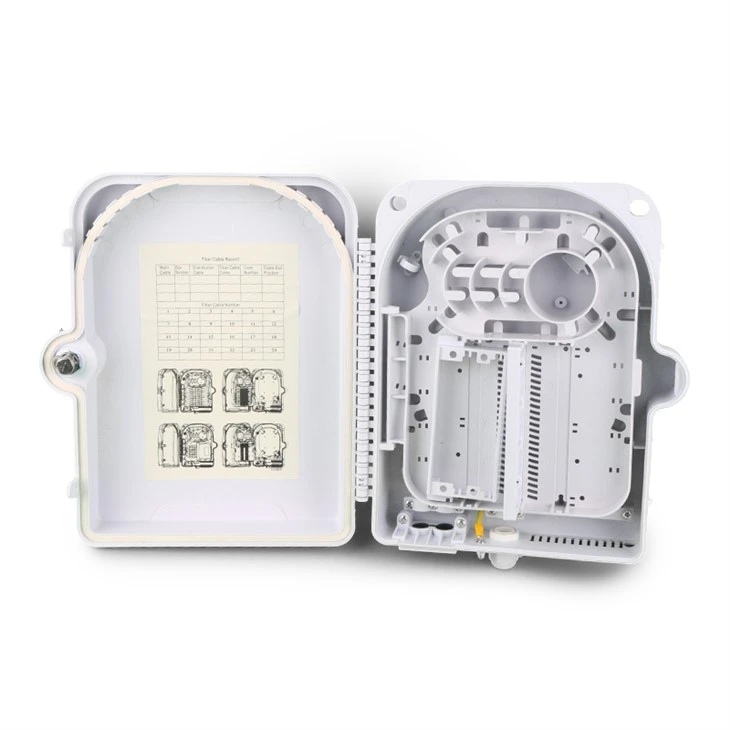

24 Cores Fiber Optic Distribution Box
The 24-core Fiber Optic Distribution Box is made of ABS+PC plastic injection molding. It is used for terminating, forking, wiring, fiber splitting; And the optical fiber, cable protection and management equipment. It primarily serves as a user access point for FTTH-ODN networks. According to its installation scene can be divided into indoor type and outdoor type, according to its function can be divided into distribution type and fiber type.
Features
- Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
- Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
- Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
- Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
- Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
- SC and duplex LC adapters can be installed, modular wiring unit design, easy installation and maintenance.
- Fiber routing specifications meet the fiber bending radius greater than 30mm, with safe and reliable fiber splicing and fiber storage functions.
Technical Indicators
Use Environment:
|
Environment temperature: |
-40℃～+80℃ |
|
Relative humidity: |
<85% (+30℃) |
|
Atmospheric pressure: |
70～106kPa |
|
Connection life: |
500 times |
Packing List:
|
Specification(mm): |
335*270*120 |
|
Large carton size (CM): |
63*36.5*54 |
|
Quantity (per box): |
10pcs |
|
Weight (per box): |
22.5KG |
