Horizontal Cable Junction Box
Your Leading Horizontal Cable Junction Box Supplier
Ningbo Qimante Communication Technology Co., Ltd. is a Chinese fiber optic communication equipment manufacturer with 5 years of production experience. Our horizontal cable junction box includes 24 cores horizontal fiber optic splice box, 12 cores horizontal cable junction box, 48 cores horizontal fiber joint closure, 72 cores outdoor cable splice box. Horizontal cable junction box is used to house and protect cable connections, especially in horizontal cabling. It provides a safe and organized space for connecting and managing optical fiber or copper cables, protecting them from environmental factors and physical damage.
Why Choose Us?
Professional Team
Since its establishment in 2019, the company has a professional technical research and development team, as well as professional management and product testing personnel.
Advanced Equipment
The company currently has production equipment such as injection molding machines, automatic nut planting machines, sheet metal laser cutting machines, bending machines, automatic welding machines, PLC alignment machines, fiber optic testers, fiber optic grinders, etc.
Broad Market
The company's products are mainly exported to Southeast Asia, Europe, America, South America, the Middle East, Central Asia, Africa and other countries worldwide.
Types of Horizontal Cable Junction Box

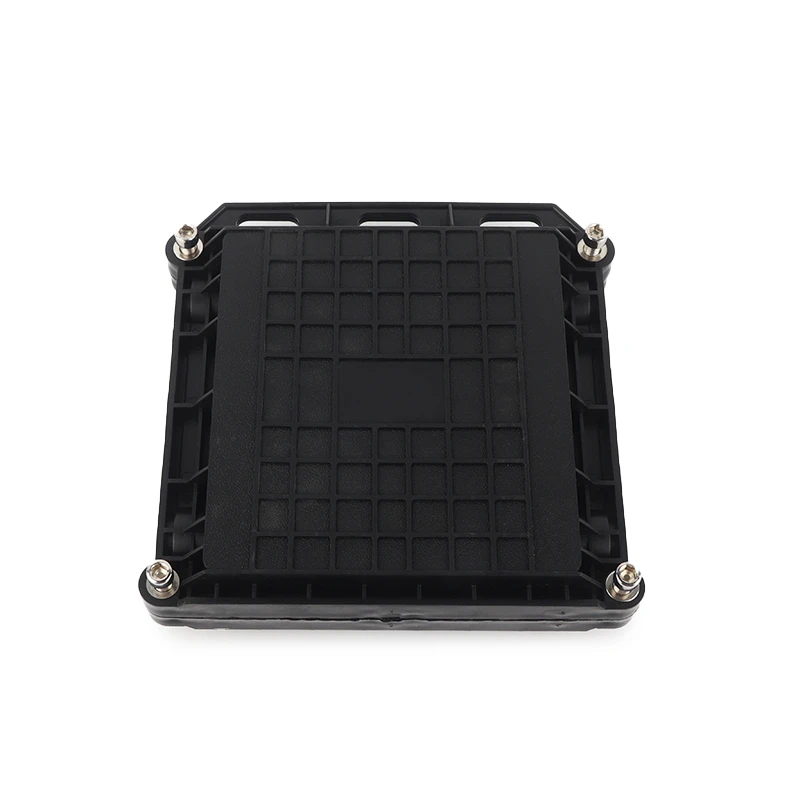

12 Cores Horizontal Cable Junction Box
The 12-Core Horizontal Cable Junction Box can realize the introduction, fixation, stripping and protection of the distribution optical cable, and connect and terminate with the household optical cable. It can meet the needs of optical signal branching and expansion, optical fiber fusion, protection, storage and management.
24 Cores Horizontal Fiber Optic Splice Box
The 24-Core Horizontal Fiber Optic Splice Box is used to connect and protect single core or bundle cables. It can be placed in underground, aerial, wall mount, pedestal or direct burial, hand hole mount and pipe mount applications.

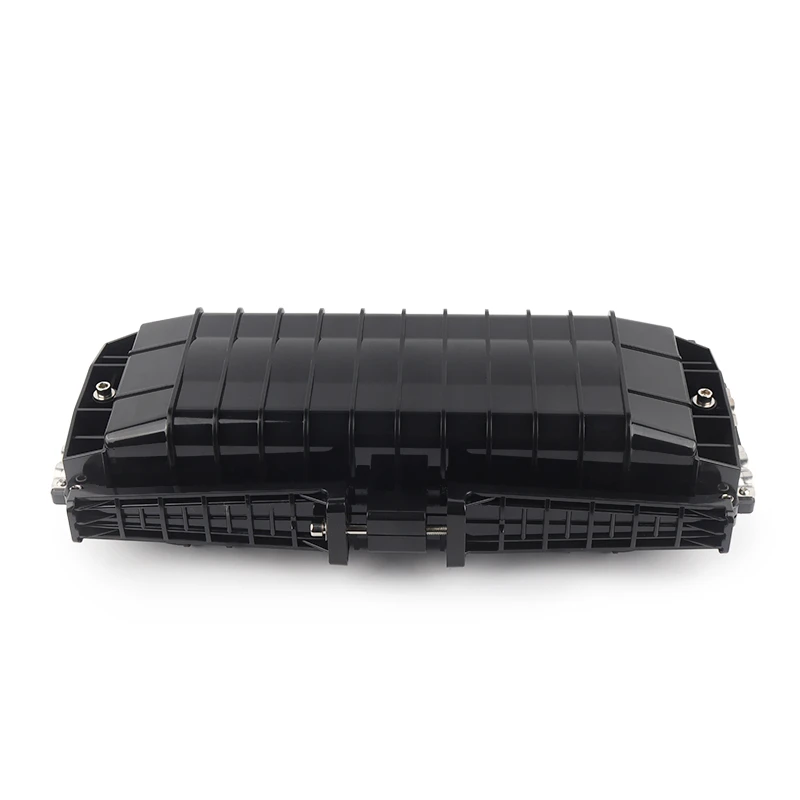

48 Cores Horizontal Fiber Joint Closure
48-Core Horizontal Fiber Joint Closure, also known as the optical fiber connector box, is an essential passive component in the management of optical fiber cables in the backbone, metropolitan area network and access network.
72 Cores Outdoor Cable Splice Box
72-Core Outdoor Cable Splice Box is widely used in network systems, CATV cable TV, optical fiber cable network systems, etc. This fiber optic splice closure is used to protect a variety of cable straight through and branch connections, and can be embedded, overhead, wall mounted and air duct mounted.
Specifications of Horizontal Cable Junction Box
|
Working temperature: |
-40℃～+60℃ |
|
Storage Temperature: |
-25℃～+55℃ |
|
Relative humidity: |
≤95% (+30℃) |
|
Atmospheric pressure: |
62～101kPa |
|
Specification(mm): |
445*141*110 |
|
Large carton size (CM): |
62*48*42 |
|
Quantity (per box): |
10pcs |
|
Weight (per box): |
25KG |
●Pre-installed slide-rail allows for fast installation and re-entry regardless of equipment or enclosures above
●Completely removable top with tilt- up, removable front and rear doors provides unobstructed access to the enclosure interior
●Reversible mounting brackets for mid- or flush-mounting on rack
●Accepts two six-fiber mounting plates to house ST, SC, FC, and MT-RJ adapters (sold separately).
●Mounting plates can also be changed out for plates with Quick port adapters (sold separately)
●Includes self-healing grommets and various cable management straps for securing cabling
Customization Options
Logo
Customizable
Color Box
Customizable
MOQ
Contact Us
Installation Requirements of Horizontal Cable Junction Box
Junction boxes are used to connect cables and can be mounted in all kinds of areas. With regard to the ambient conditions, several factors and standardised specifications must be taken into account, in order to select the right junction box for the intended place of use. Thus, with installations in outdoor areas or in damp or wet environments, it is necessary to estimate exactly how strong the load from weathering or possibly damaging environmental influences is and which protective measures are necessary.
The division into different protection ratings, also termed IP codes, provides information on how strongly a junction box is protected against contact and the harmful ingress of water. By contrast, the so-called IK code represents the protection rating against mechanical loads. To guarantee a safe device installation, all these factors must be checked in individual cases and observed during the selection.
Packing & Delivery
Payment Terms
T.T with 30% downpayment, 70%before shipment.
Paypal or West Union also accept.
FAQ
