Fiber Adapter
Ningbo Qimante Communication Technology Co., Ltd. is a Chinese fiber optic communication equipment manufacturer with 5 years of experience. Since its establishment in 2019, the company has produced 20 injection molding machines, complete supporting equipment in the sheet metal workshop, 4 laser cutting machines, a separate electrostatic spraying workshop, 4 fiber tail production lines, 25 PLC alignment machines, 4 production assembly lines, and 200 technical innovation personnel and assembly employees to meet customer needs.
Why Choose Us
Production Equipment
The company currently has production equipment such as injection molding machines, automatic nut planting machines, sheet metal laser cutting machines, bending machines, automatic welding machines, PLC alignment machines, fiber optic testers, fiber optic grinders, etc.
Production Market
The company's products are mainly exported to Southeast Asia, Europe, America, South America, the Middle East, Central Asia, Africa and other countries worldwide.
Our Service
From product sales to customer use, the company will always provide good service, allowing customers to use and construct with peace of mind.
Main Products
Currently, the company mainly produces products such as fiber optic distribution boxes, fiber optic distribution boxes, fiber optic junction boxes, fiber optic splice boxes, ODF fiber optic terminal boxes, ODF fiber optic distribution frames, fiber optic cable fixing equipment, etc.

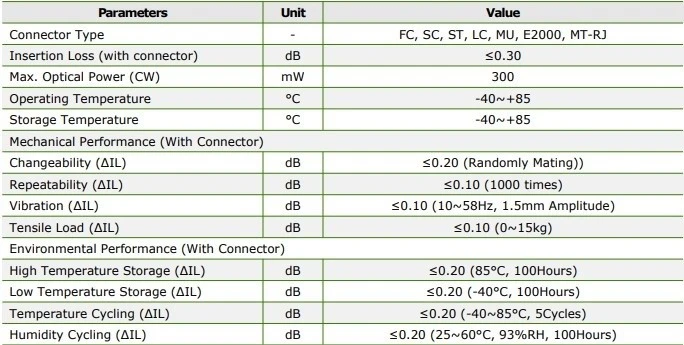

Specifications
Parameters
|
MC/UPC |
|
|
Insertion loss (typical)≤0.30dB |
|
|
Insertion loss (random) |
≤0.50dB |
|
Return loss |
≥40dB |
|
MC/APC |
|
|
Insertion loss (typical) |
≤0.30dB
|
|
Insertion loss (random) |
≤0.50dB |
|
Return loss |
≥60dB |
Advantages of Fiber Adapter
Easy to use, stable and reliable: Fibre optic adaptor is easy to use, stable and reliable connection, long service life, easy maintenance.
Low loss: Fibre optic adapters can precisely butt the two end surfaces of the optical fibre to maximise the coupling of optical energy into the receiving fibre, thus reducing the loss of optical signals.
Easy to maintain and clean: Fibre optic adapters are relatively easy to clean, can be maintained by dry cleaning and wet cleaning methods to ensure that the end face of the connector is clean to reduce the impact of contamination on optical transmission.
Cost effective: The price of fibre optic adapters is relatively low, with a high return on investment.
Widely used: Fibre optic adapters are widely used in television networks, local area networks, video transmission, fibre optic communication systems and FTTH fibre to the home and other fields, is a practical, cost-effective connection components.
Application of Fiber Adapter
Local area network or internet
This is used to install local area networks made up of patch cords. For example, when it comes to Ethernet networks, patch cords connect the devices by a fiber optic adapter or a patch panel. Many types are available in the market, and they have various combinations and varieties.
Fiber optic termination
This is used to terminate the optical fiber and is commonly found in telecommunication,LAN, and CATV applications. These adapters are usually used to connect one end of the optical fiber to an adapter for terminating and another end of the type fibers to its ends. Similarly, the termination can be done manually or automatically, depending on your requirement and device.
Networking
This is used in the installation of network systems. In this case, too, patch cords are used to connect computers on a network. The fiber optic adapter can be used with Fiber Optic Splice
Tray. as it protects them from damage. However, these adapters are attached at the end of each cord to ensure that it works properly and effectively.
Furthermore, when you install network cable, it is advisable to use tools like a cable stripper and crimper. With these tools, all the wires in the network system are cut, stripped,and connected correctly. Moreover, one should also ensure that copper-shielded cable (RG6) is used as they provide better signal quality and minimize interference from other devices.
Security system
This is used in a security system with an alarm. This adapter is connected between the alarm and the receiver, making it possible for both devices to communicate through a wireless network connection. The security system always needs reliable data, so fiber optic adapters are best for this purpose.
Types of Fiber Adapter
* LC adapter
LC adapters can be used for the connection of LC patch cables or LC connectors. There are different types including LC to LC, LC to FC, LC to SC, LC to ST, and LC to MU, etc. All these adapters can be available in simplex, duplex, quad, single-mode, multimode, UPC, APC, PC with plastic housing, zirconia sleeve, and optional bronze sleeve.
* FC adapter
FC adapters can be used for the connection of FC patch cables or FC connectors. FC adapters include square type, single D type and double D types, in single-mode and multimode versions. All these adapters are with metal housing and ceramic sleeves. The FC square adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. FC round adapters come with a choice of D or double D Flange, and feature nickel plated brass housing for corrosion resistance.
* SC adapter
SC adapters can be used for the connection of SC patch cables or SC connectors. There are various types including single-mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex versions. Standard female to female SC adapter and hybrid SC adapters are also available. Typical SC adapters are with plastic housing. There are also metal housing SC adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.
* ST adapter
ST adapters can be used for the connection of ST patch cables or ST connectors. There are simplex, duplex, single-mode, multimode, metal, and plastic ST adapters. Most ST adapters are simplex with zirconia sleeves, and optional bronze sleeve adapters are available for multimode.
* E2000 adapter
E2000 adapters can be used for the connection of E2000 patch cables or E2000 connectors. There are single-mode and multimode E2000 adapters. These adapters include both UPC and APC polish types. The E2000 adapters are with zirconia sleeves and in simplex style. E2000 is a trademark of Diamond company.
* MTP/MPO adapter
MTP/MPO adapter provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fiber to 72 fiber, which are widely applied in 10G/40G/100G networks, data center, optical fiber communication system, cable television network, fiber optic access network and video transmission.
Sales Market
The company's products are mainly exported to Southeast Asia, Europe, America, South America, the Middle East, Central Asia, Africa and other countries worldwide. Our products have received unanimous praise from countries around the world, and foreign friends and customers visit the factory for inspection and visits up to 20 times a year.
