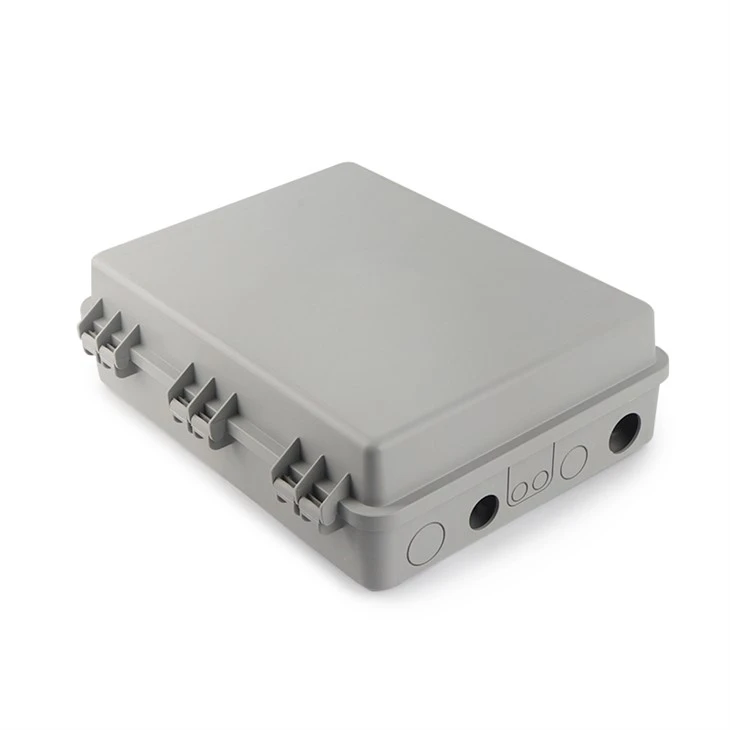

64 Cores Outdoor Distribution Box

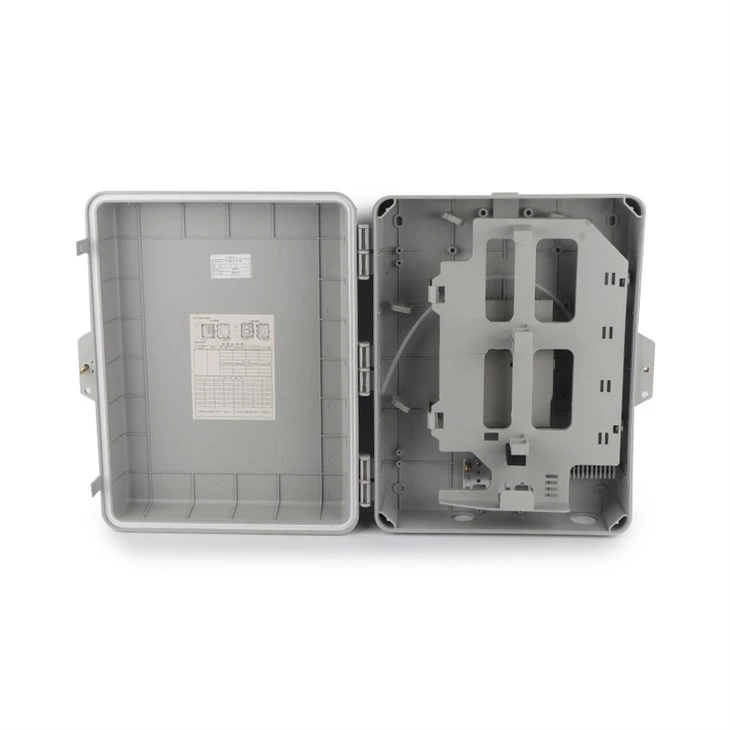

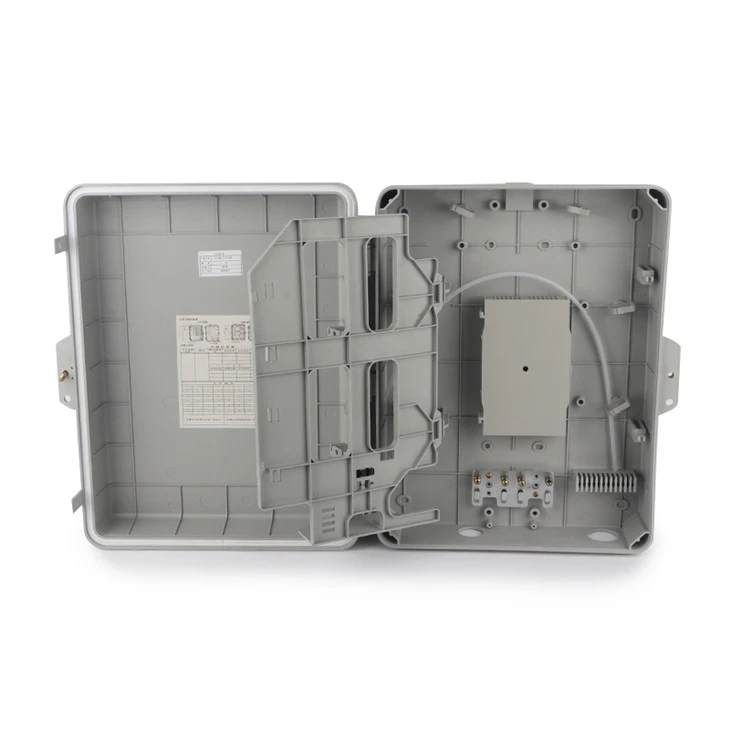

The 64-Core Outdoor Distribution Box is made of ABS plastic injection molding. The PLC splitter provides cable management for the connection of the distribution cable and the lead-in cable through the insertion module at the user access point in the FTTH passive optical network. The PLC splitter is a standard modular splitter that protects the PLC splitter well and enables quick deployment of the splitter.
Features
- Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
- Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
- Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
- Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
- Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
Technical Indicators
Use Environment:
|
Environment temperature: |
-40℃～+80℃ |
|
Relative humidity: |
<85% (+30℃) |
|
Atmospheric pressure: |
70～106kPa |
|
Connection life: |
500 times |
|
Installation Method: |
Wall mounting and pole mounting (back plate and pole ring are optional) |
|
Dimension(mm): |
292.5*228*102 |
