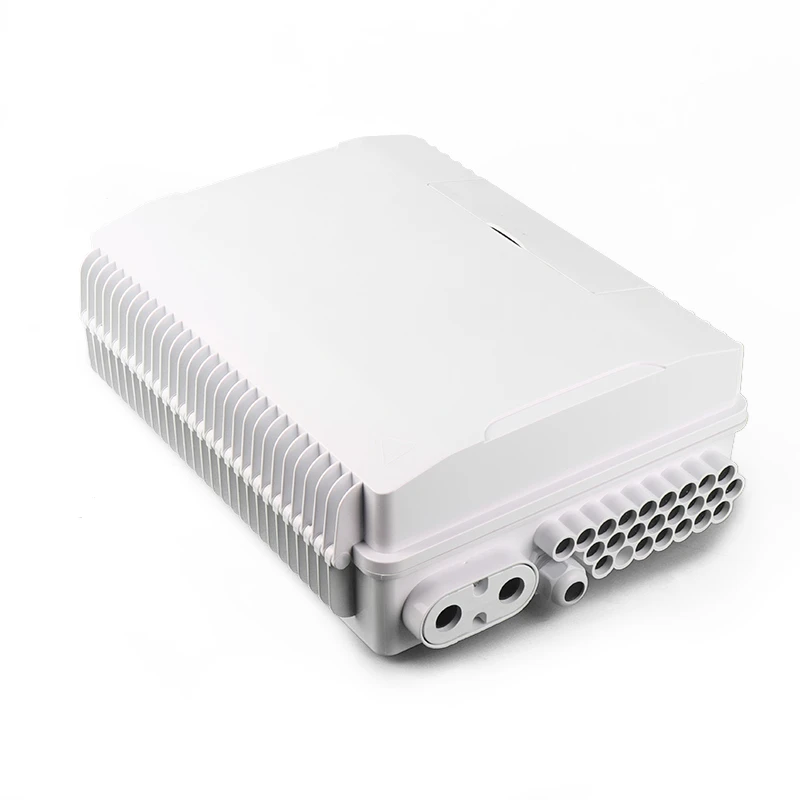

32 Cores Outdoor Fiber Splice Box

The 32-core outdoor fiber splice box is made of ABS plastic injection molding. It provides cable management by inserting the module PLC splitter to connect distribution cables and lead-in cables at the user access point in the FTTH passive optical network. The PLC splitter is a standard modular splitter that protects the PLC splitter well and enables quick deployment of the splitter.

• Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
• Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
• Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
• Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
• Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
• Made of high-quality impact resistant plastic, with a standard user interface.
• Suitable for 2 1x8 or 1 1x16 mini (tubular) PLC splitters.
• Anti-ultraviolet, anti-impact, waterproof.
• All 4 open cable intakes meet the requirements of non-breaking cable.

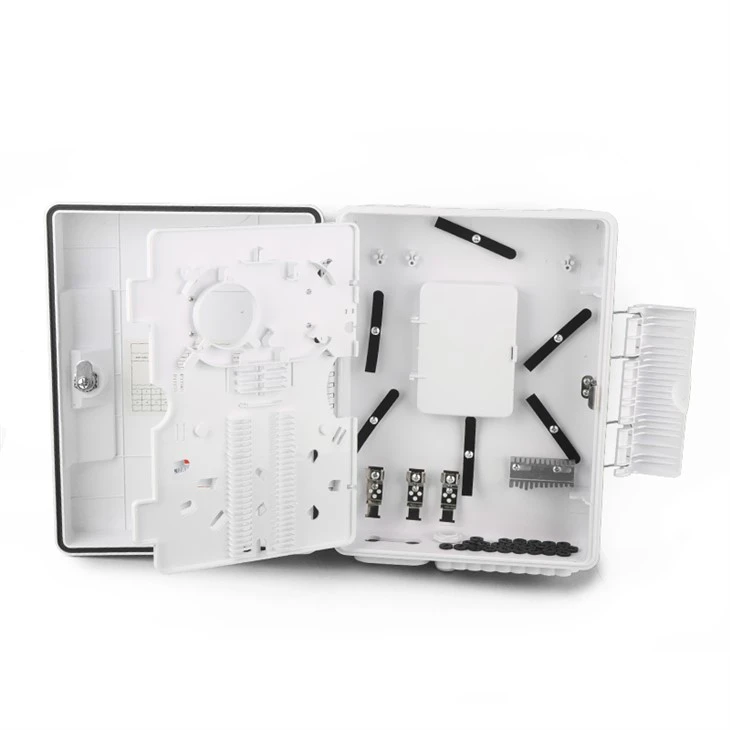

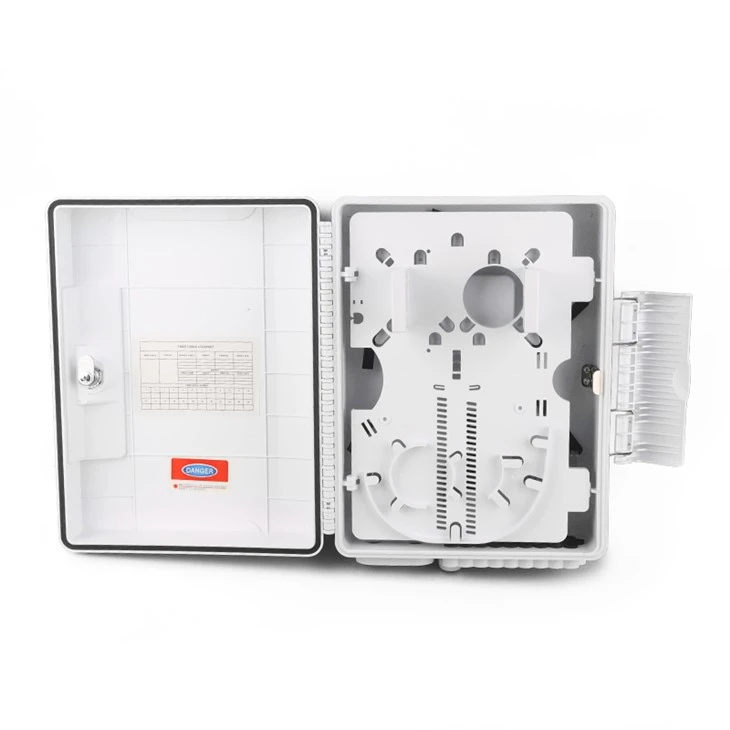

• The structural design of the bottom shell, the reversible middle welding plate and the inner cover makes the optical cable inlet and outlet area, welding area, optical cable winding storage area and optical cable outlet area form a closed independent partition, which is conducive to management and maintenance.

Use Environment:

Packing List:
