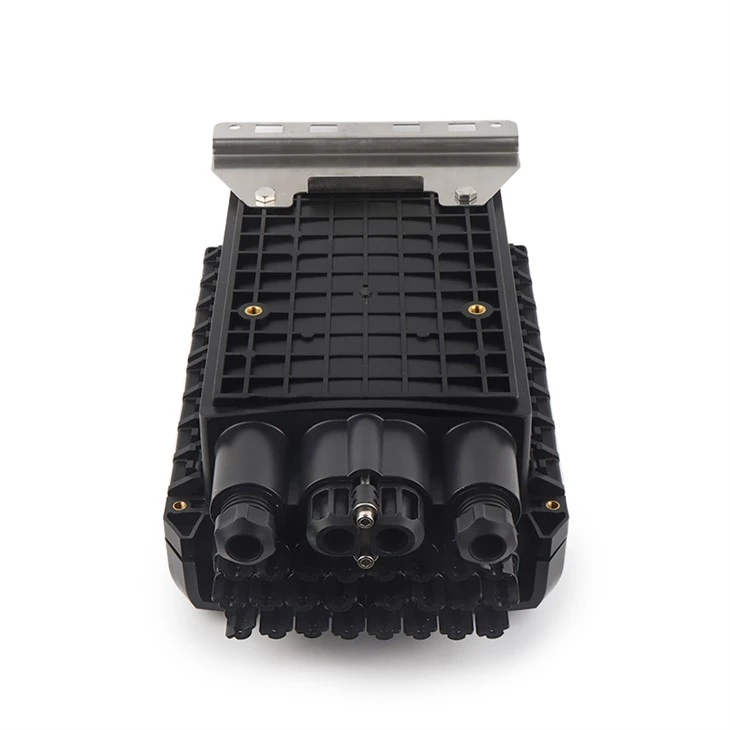

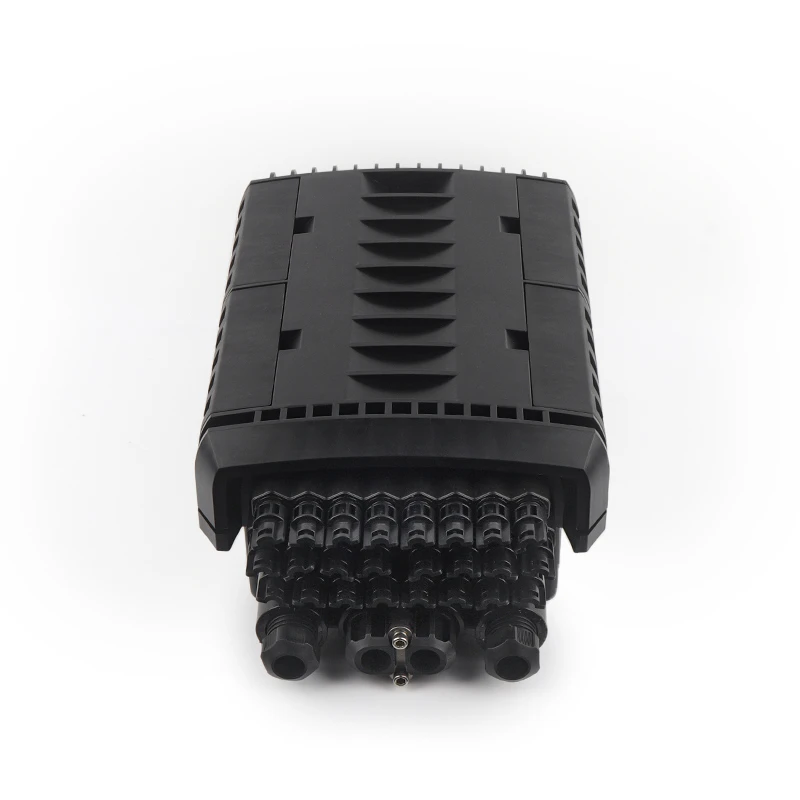

48 Cores Fiber Junction Distribution Box

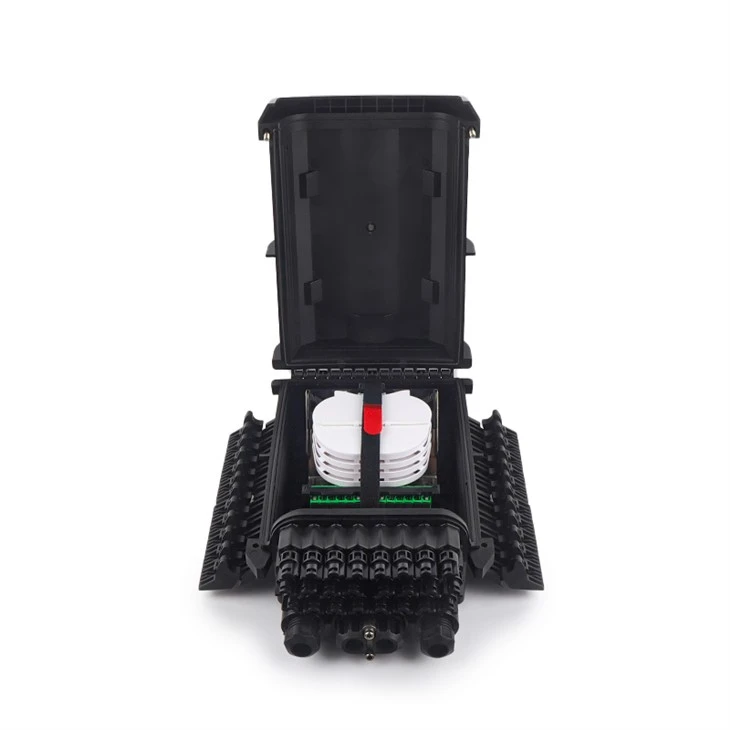

The 48-Core Fiber Junction Distribution Box is made of ABS plastic injection molding. The distribution box can realize the functions of fiber welding, distribution and scheduling in FTTH system. The fiber optic box is made of a new type of ABS material with a robust and durable shell. The IP68 protection rating allows it to be installed and used outdoors. Internally, the FDB can also be fitted with various brackets to mount adapters, micro-steel splitters or box splitters.
Features
- Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
- Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
- Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
- Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
- Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
- Reusable sealing system and easy to assemble.
- Multiple options are available depending on the number of fibers.
Technical Indicators
Use Environment:
|
Environment temperature: |
-40℃～+80℃ |
|
Relative humidity: |
<85% (+30℃) |
|
Atmospheric pressure: |
70～106kPa |
|
Connection life: |
500 times |
Packing List:
|
Specification(mm): |
385*245*155 |
|
Large carton size (CM): |
54*41*37.5 |
|
Quantity (per box): |
4pcs |
|
Weight (per box): |
20KG |
