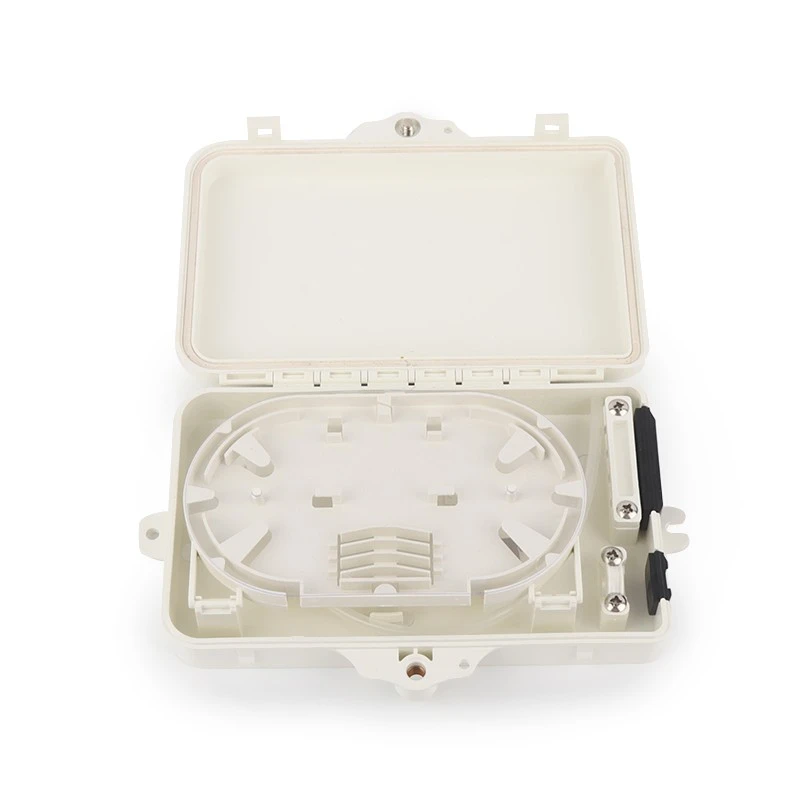

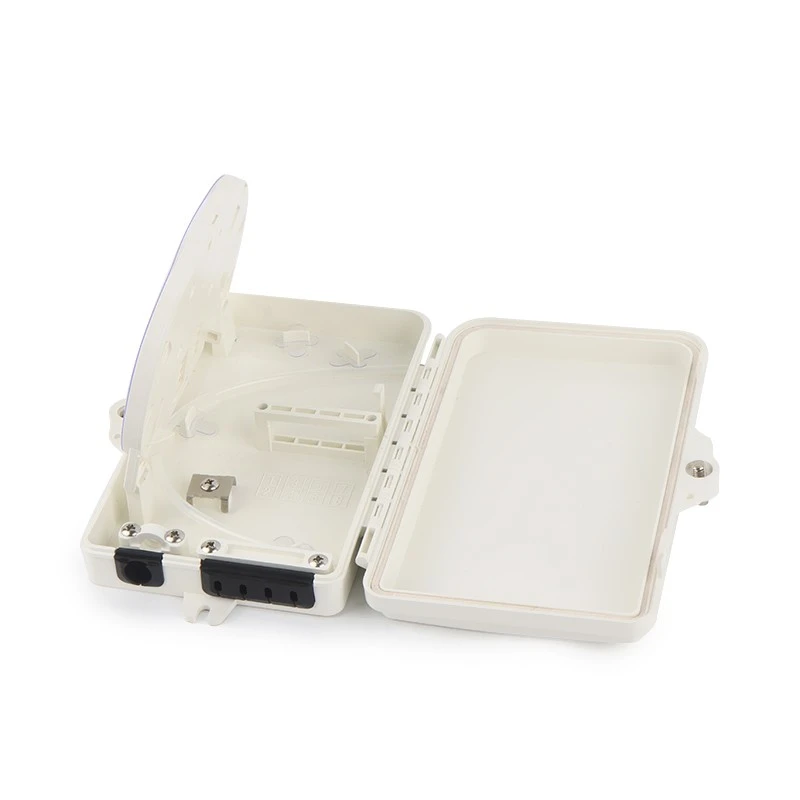

4 Cores Splitter Box

The 4-core fiber optic splitter box is made of ABS+PE plastic injection molding. It is suitable for the wiring connection between optical cables and optical communication equipment. Through the adapter in the distribution box, the optical signal is led out with an optical jumper or optical splitter to realize the optical wiring function. It is suitable for the protective connection of optical cables and wiring pigtails or optical splitters, and is also suitable for the use of optical fiber terminal points in optical fiber access networks. The product is suitable for indoor or outdoor, wall-mounted or pole-mounted.

• Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
• Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
• Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
• Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
• Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).

Use Environment:

Packing List:
