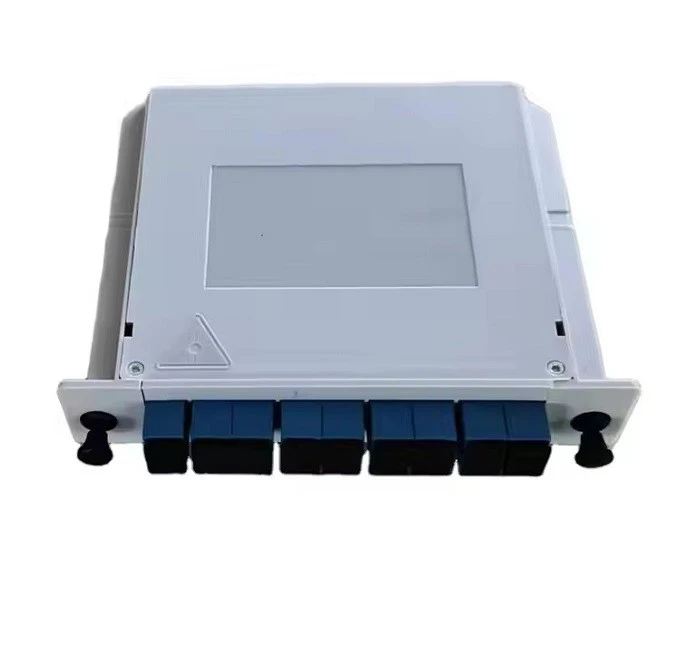

1x8 SC UPC PLC Plug-in Splitter
PLC splitter is one of the most important passive components in the optical fiber link. It is an optical fiber junction device with multiple input ends and multiple output ends. It is particularly suitable for connecting the central office and terminal equipment in passive optical networks (EPON, GPON, BPON, etc.) and realizing the splitting of optical signals.
Application
- Fiber-to-the-home
- Fiber-optic communication systems
- Passive optical networks
- Fiber-optic test equipment
- Fiber-optic sensors
- Fiber-optic CATV
- Fiber-optic LAN
Technical Indicators
|
Configuration type: |
1*8 |
|
PLC Splitter type: |
Blockless PLC Plug-in Splitter |
|
Connector type: |
SC/UPC |
|
Operating bandwidth: |
1260~1650nm |
|
Typical insertion loss: |
≤ dB: 10.2 |
|
Insertion loss: |
≤dB: 10.7 |
|
Loss uniformity: |
≤dB: 0.4 |
|
Polarization dependent loss: |
≤dB: 0.2 |
|
Wavelength dependent loss: |
≤dB: 0.3 |
|
Return loss: |
≥dB: 50 |
|
Temperature dependent loss: |
≤dB: 0.5 |
