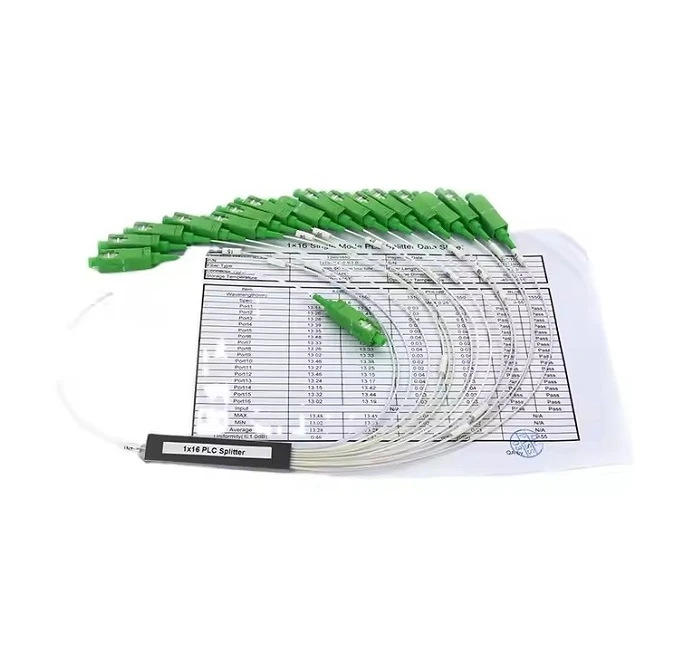

1x16 SC APC PLC Differential Splitter
PLC Splitters are optical power distribution products based on planar waveguide technology, with low insertion loss and polarization related loss, small size, wide operating wavelength range, high channel uniformity, especially suitable for passive optical networks (EPON, BPON, GPON, etc.) to connect the local end to the terminal equipment. Realize optical signal shunt.
Feature
- The light distribution is uniform, and the signal can be evenly distributed to the user's hand.
- New upgraded chip, quality assurance, stable performance.
- This product uses a new ceramic plug-in, excellent performance, good stability, strong durability.
- Low insertion loss, high back reflection, low polarization related loss.
Technical Indicators
|
Application: |
LAN, WAN & Metro Networks |
|
Telecommunication Networks |
|
|
Passive Optical Networks |
|
|
FTT(X)Systems |
|
|
CATV |
|
|
Value Added Module |
|
|
Configuration type: |
1*16 |
|
PLC Splitter type: |
PLC Differential Splitter |
|
Connector type: |
SC/APC |
|
Operating bandwidth: |
1260~1650nm |
|
Typical insertion loss: |
≤ dB: 10.2 |
|
Insertion loss: |
≤dB: 10.7 |
|
Loss uniformity: |
≤dB: 0.4 |
|
Polarization dependent loss: |
≤dB: 0.2 |
|
Wavelength dependent loss: |
≤dB: 0.3 |
|
Return loss: |
≥dB: 50 |
|
Temperature dependent loss: |
≤dB: 0.5 |
