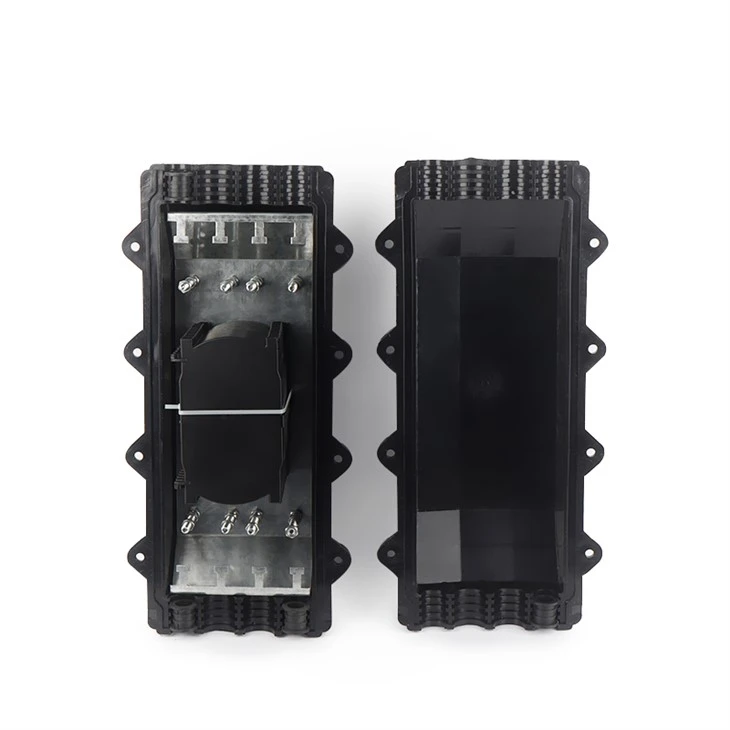

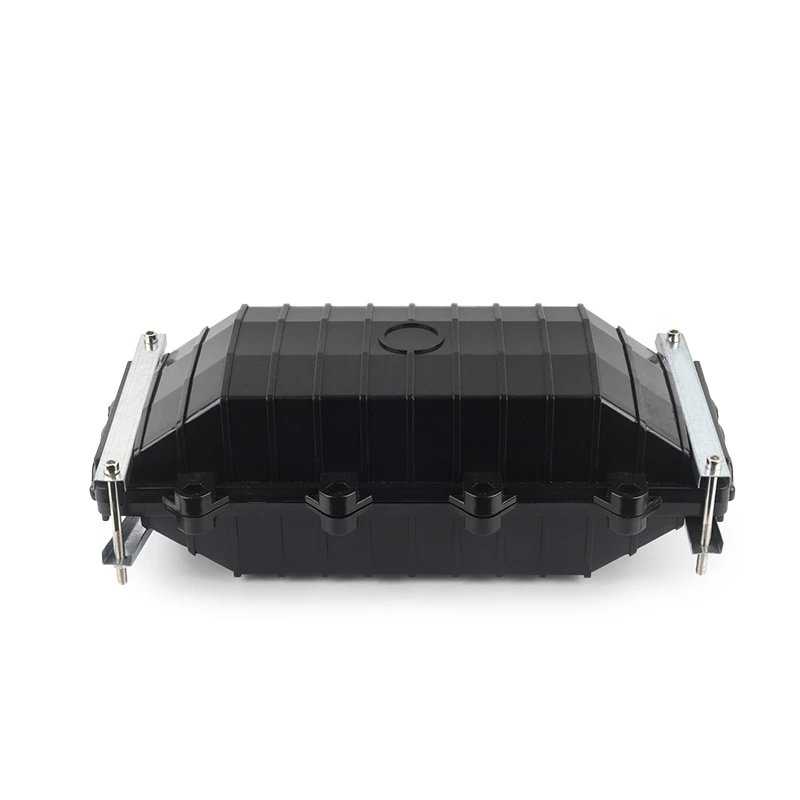

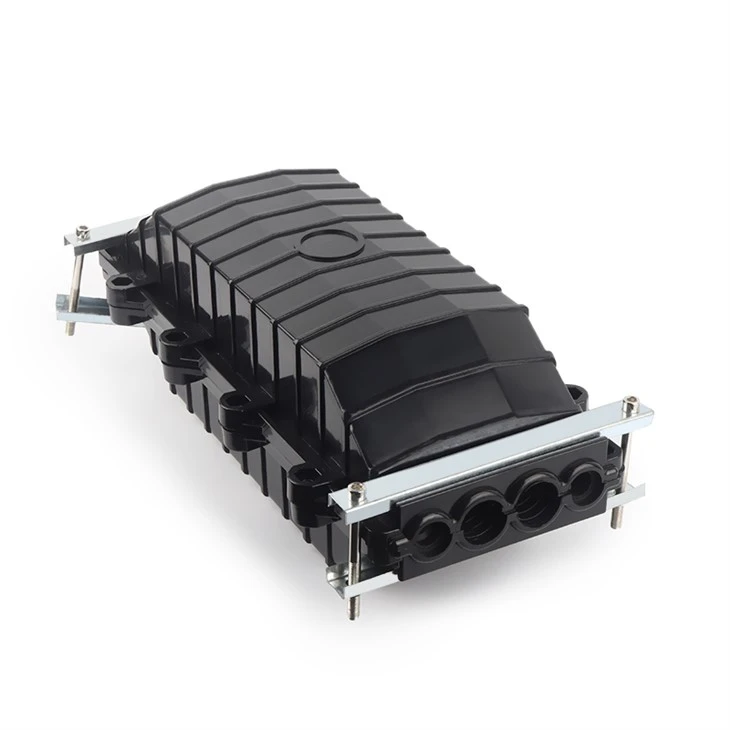

72 Cores Outdoor Cable Splice Box
72-Core Outdoor Cable Splice Box is widely used in network systems, CATV cable TV, optical fiber cable network systems, etc. This fiber optic splice closure is used to protect a variety of cable straight through and branch connections, and can be embedded, overhead, wall mounted and air duct mounted. The whole set of optical fiber splicing closed plastic parts are made of high-strength PC synthetic engineering plastics with scientific formula, and are injection molded by CNC equipment, which can effectively prevent material aging caused by cold, heat, oxygen and ultraviolet light in nature, and has excellent mechanical strength.
Features
- Realizing the splicing, fiber splitting and direct fusion of optical cables;
- The box body is installed and locked with screws, making construction convenient and quick;
- The welding plate adopts a flip-type structure, making construction convenient and quick;
- Full curvature radius control ensures that the curvature radius of the optical fiber is greater than 30mm at any position;
- Installation of pipes and hanging wires;
- The fiber optic connector closure has multiple reuse and capacity expansion functions.
- The fiber optic connector closure uses multiple stainless steel screws to fix the seal, which is reliable and has excellent performance.
Technical Indicators
Use Environment:
|
Working temperature: |
-40℃~+60℃ |
|
Storage Temperature: |
-25℃~+55℃ |
|
Relative humidity: |
≤95% (+30℃) |
|
Atmospheric pressure: |
62~101kPa |
|
Cable diameter (mm): |
Φ7-Φ16 |
|
Sealing structure: |
Sticky cincture or silicon gum material Sealing |
