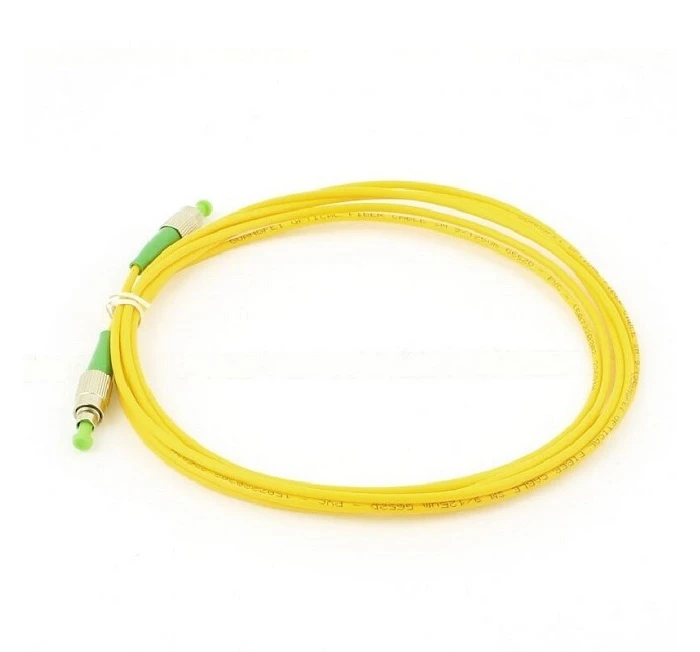

FC UPC Fiber Optic Jumper
FC UPC Fiber Optic Jumper is the first fiber optic patch cord to use a ceramic ferrule connector. Unlike LC fiber optic jumper and SC fiber optic jumper, the connector it uses is a circular screw connector made of nickel-plated or stainless steel, which needs to be fixed to the adapter or jack with a threaded clip.
Features
The external reinforcement method is to use a metal sleeve, and the fastening method is a screw buckle. It is generally used on the ODF side (mostly used on the patch panel).
- Push-pull latching mechanism
- Non-optical disconnect performance
- High quality zirconia ferrules
- Materials meet RoHS requirements
- Riser, Plenum, and LSZH cables available
Technical Indicators
|
Application: |
Telecommunication |
|
Computer networks |
|
|
CATV networks active |
|
|
Device Termination |
|
|
Instrumentation |
|
|
Connector type: |
FC to FC |
|
Polish type: |
UPC to UPC |
|
Insertion loss: |
≤0.3dB |
|
Return loss: |
≥60dB |
|
Wavelength: |
1310/1550nm |
|
Minimum Bend Radius: |
30mm |
|
Attenuation at 1310nm: |
0.36 dB/km |
|
Attenuation at 1550nm: |
0.22 dB/km |
|
Fiber Count: |
Simplex |
