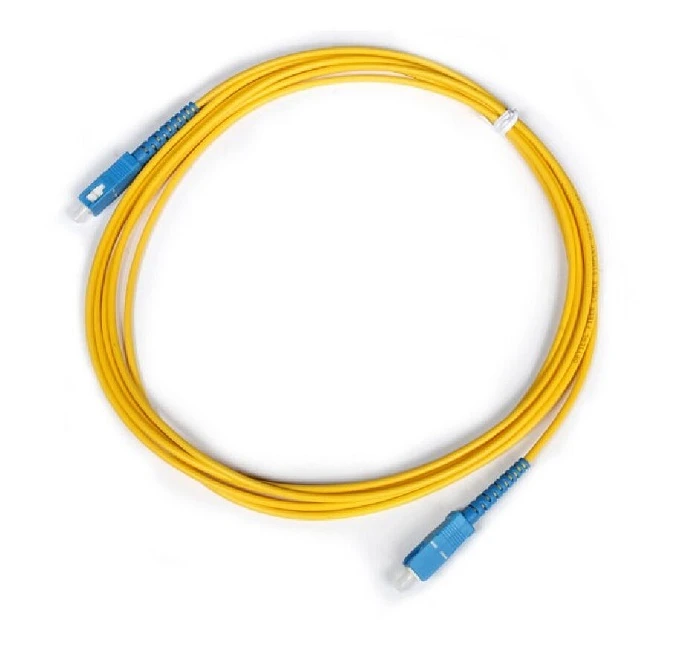

SC UPC Fiber Optic Jumper Pigtail
Fiber optic jumper refers to a fiber optic cable with connector plugs installed at both ends to achieve active connection of the optical path; the one with a plug at one end is called a pigtail. Fiber optic patch cord (Optical Fiber Patch Cord/Cable) is similar to coaxial cable, but without the mesh shielding layer. The center is the glass core for light propagation. In multimode optical fiber, the core diameter is 50μm~65μm, which is roughly equivalent to the thickness of a human hair.
Application
Fiber optic jumpers are widely used in: communication rooms, fiber to the home, local area networks, fiber optic sensors, fiber optic communication systems, fiber optic connection transmission equipment, national defense preparedness, etc. Suitable for cable TV networks, telecommunications networks, computer fiber optic networks and optical testing equipment. It is mainly used in several aspects.
- Fiber optic communication system
- Fiber optic access network
- Fiber optic data transmission
- Fiber optic CATV
- Local area network (LAN)
- Test equipment
- Fiber optic sensor
Technical Indicators
|
Connector type: |
SC to SC |
|
Polish type: |
UPC to UPC |
|
Insertion loss: |
≤0.3dB |
|
Return loss: |
≥60dB |
|
Wavelength: |
1310/1550nm |
|
Minimum Bend Radius: |
30mm |
|
Attenuation at 1310nm: |
0.36 dB/km |
|
Attenuation at 1550nm: |
0.22 dB/km |
|
Fiber Count: |
Simplex |
