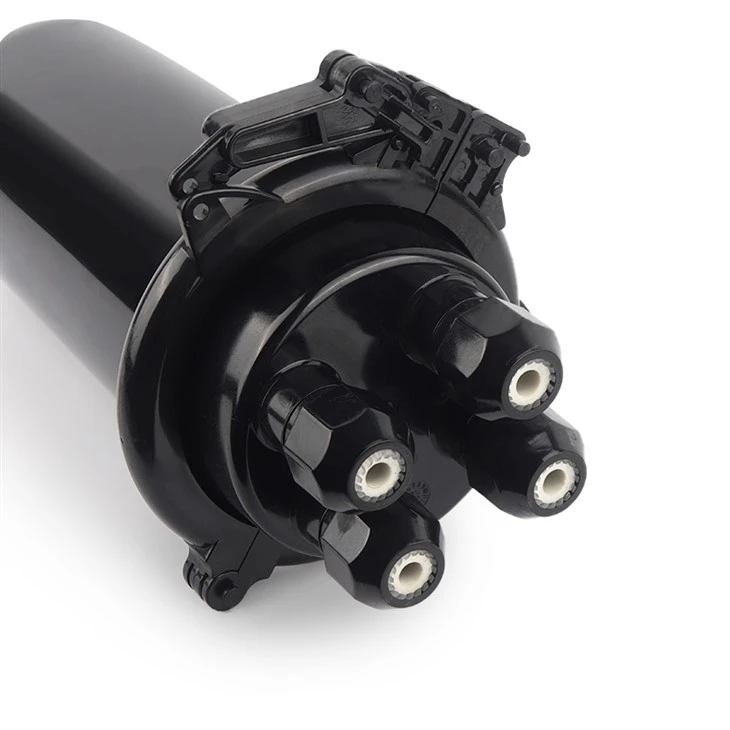

48 Cores Vertical Fiber Optic Splice Closure
The 48-Core Vertical Fiber Optic Splice Closure is widely used in optical cable connection, distribution and shunt. The rugged box housing and main structure can withstand harsh environments. It protects the cable from vibration, shock, stretching and distortion. The closure can work in -35/+70℃ environment, cold resistance, heat resistance, electrical insulation, chemical corrosion resistance.
Features

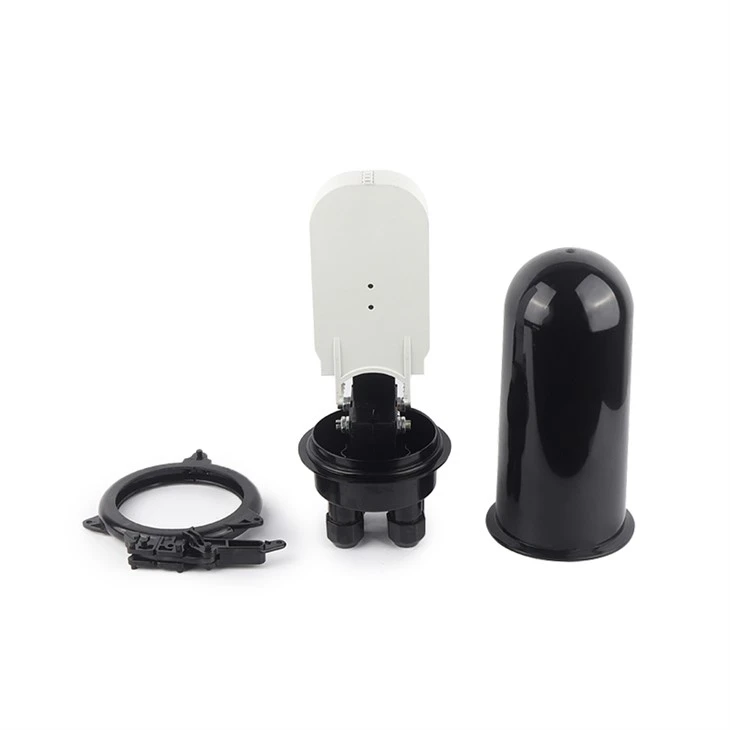

- The welding plate adopts a flip-type structure, making construction convenient and quick.
- Full curvature radius control ensures that the curvature radius of the optical fiber is greater than 30mm at any position.
- Fiber optic connector closure can be used for the fusion splicing of part of the main optical cable and branch optical cable, part of the main optical cable and pigtail.
- The fiber optic splicing tray can be increased or decreased quickly, saving time. The rotation angle of the splicing tray can reach more than 90 °C, which provides convenience for future expansion and maintenance.
Technical Indicators
Use Environment:
|
Working temperature: |
-40℃~+60℃ |
|
Storage Temperature: |
-25℃~+55℃ |
|
Relative humidity: |
≤95% (+30℃) |
|
Atmospheric pressure: |
62~101kPa |
Packing List:
|
Specification(mm): |
375*160 |
|
Large carton size (CM): |
62.5*48*49.5 |
|
Quantity (per box): |
10pcs |
|
Weight (per box): |
15KG |
