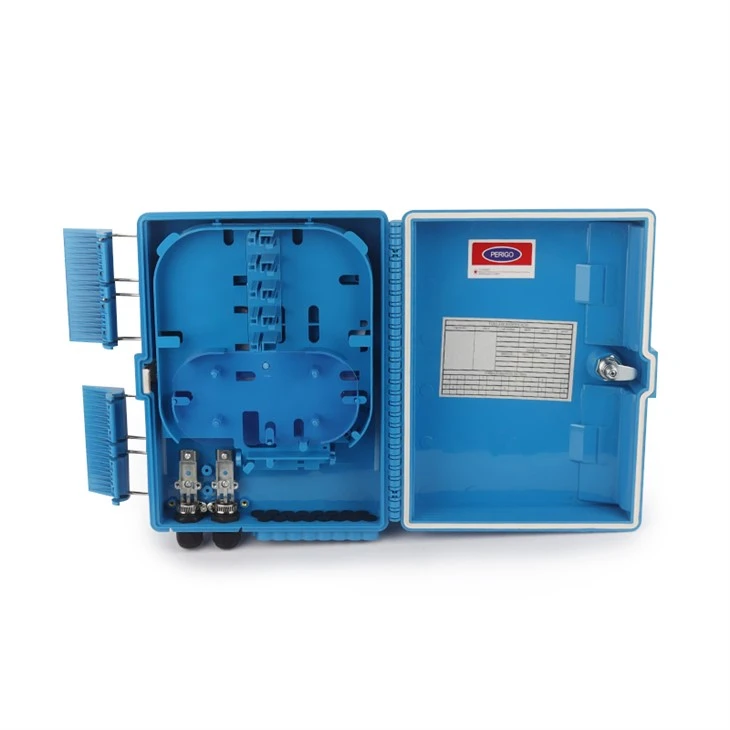

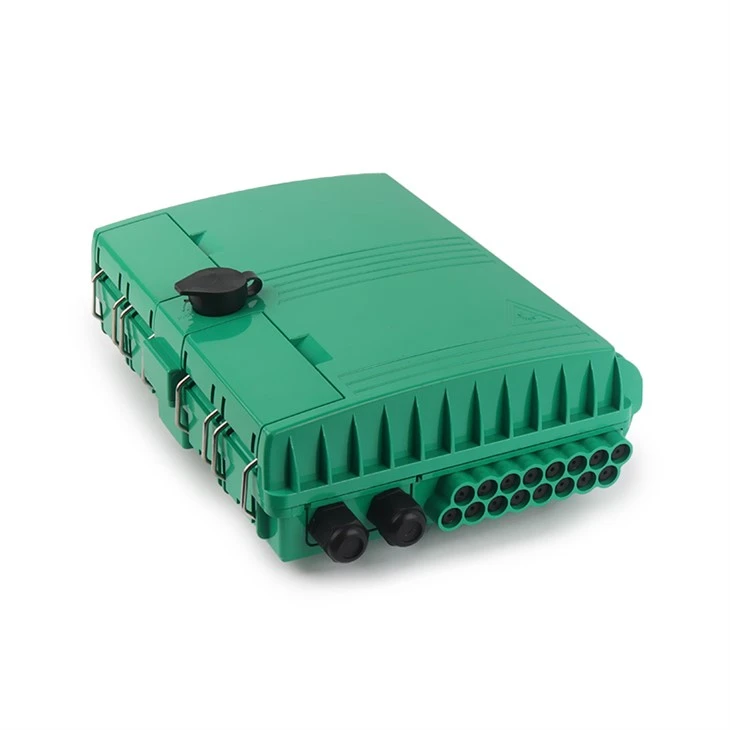

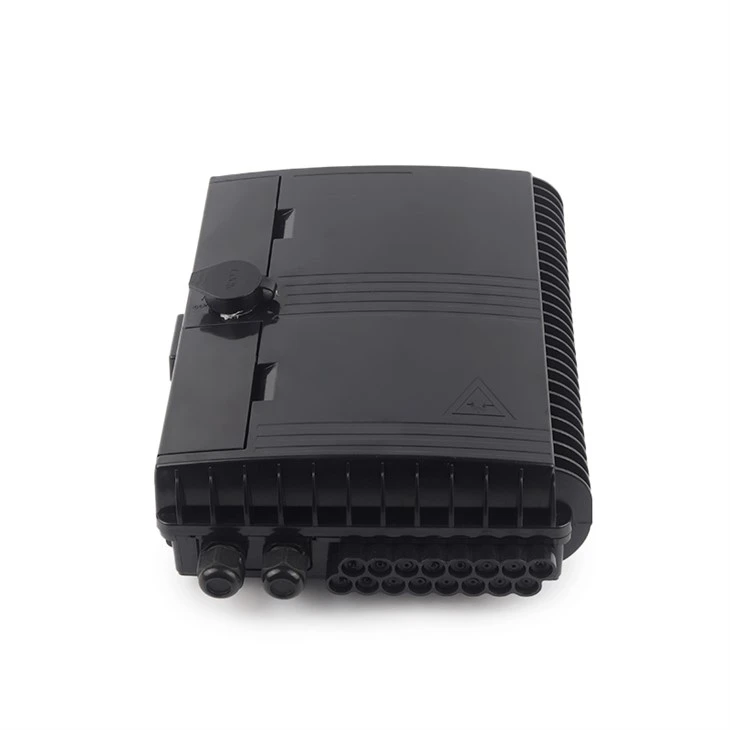

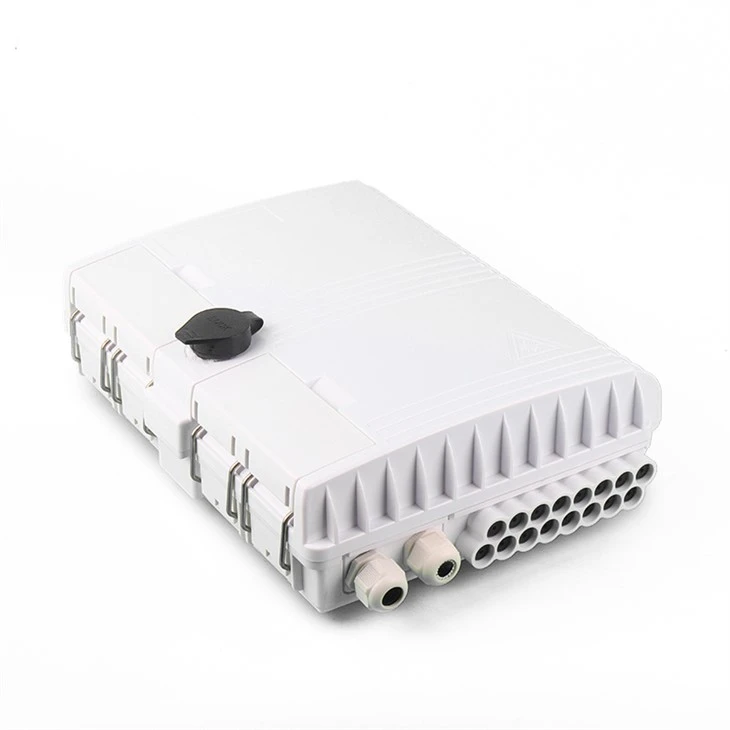

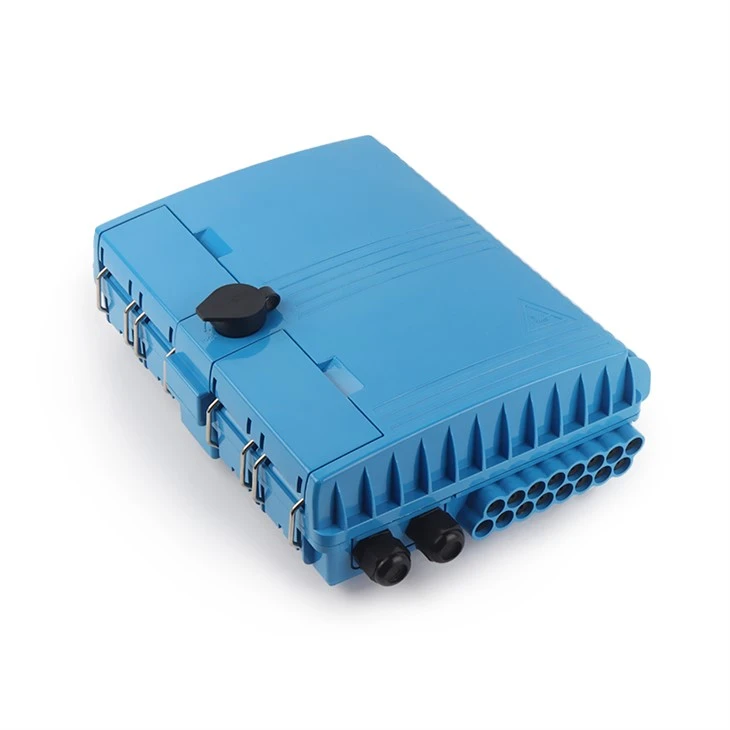

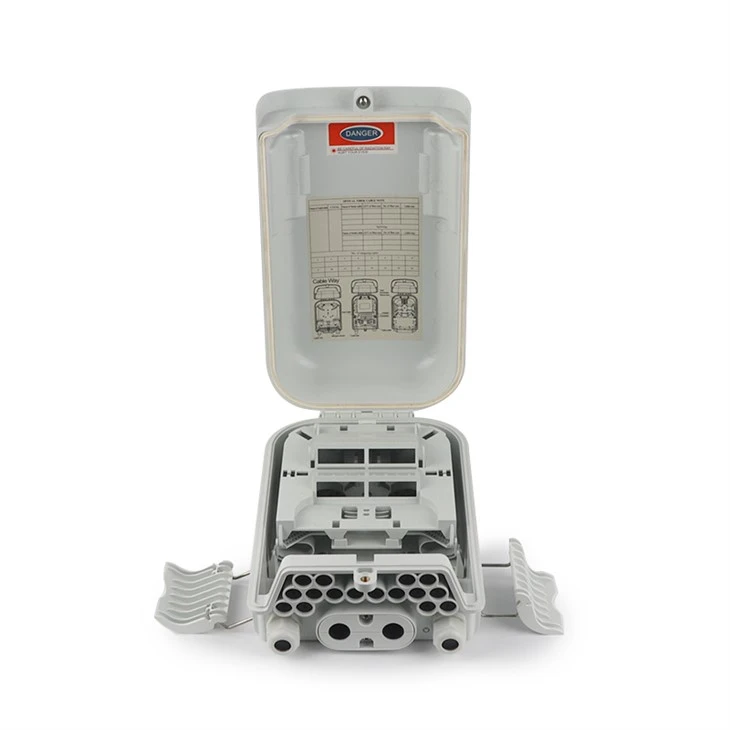

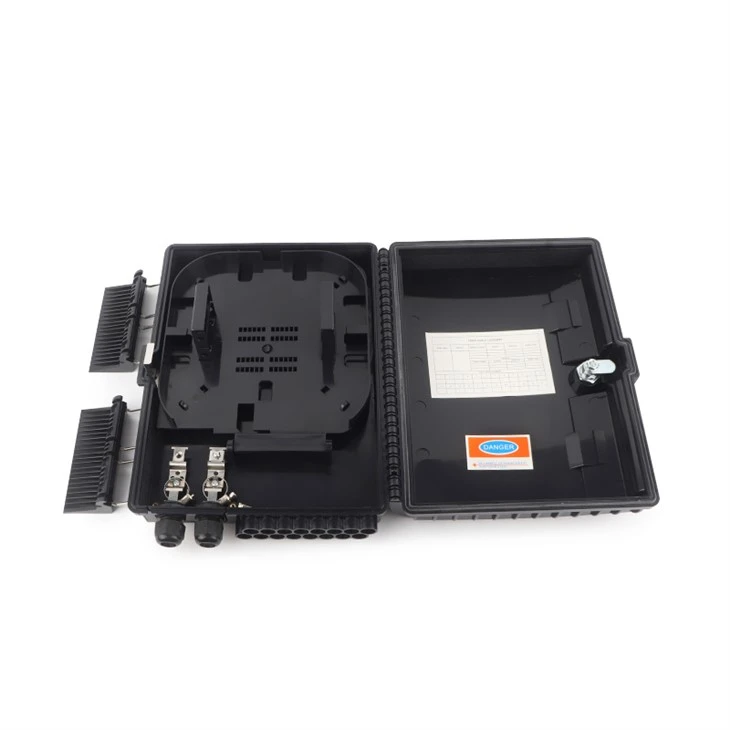

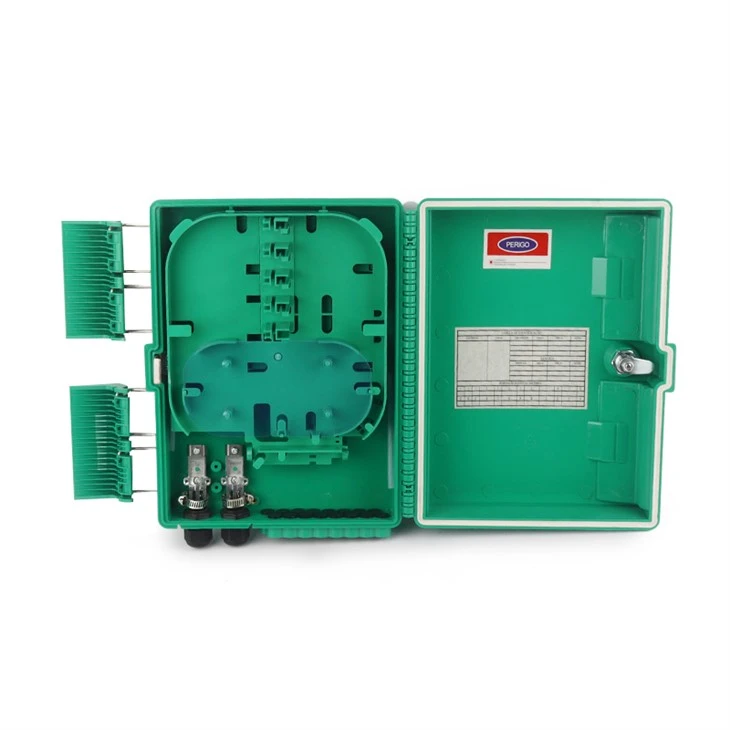

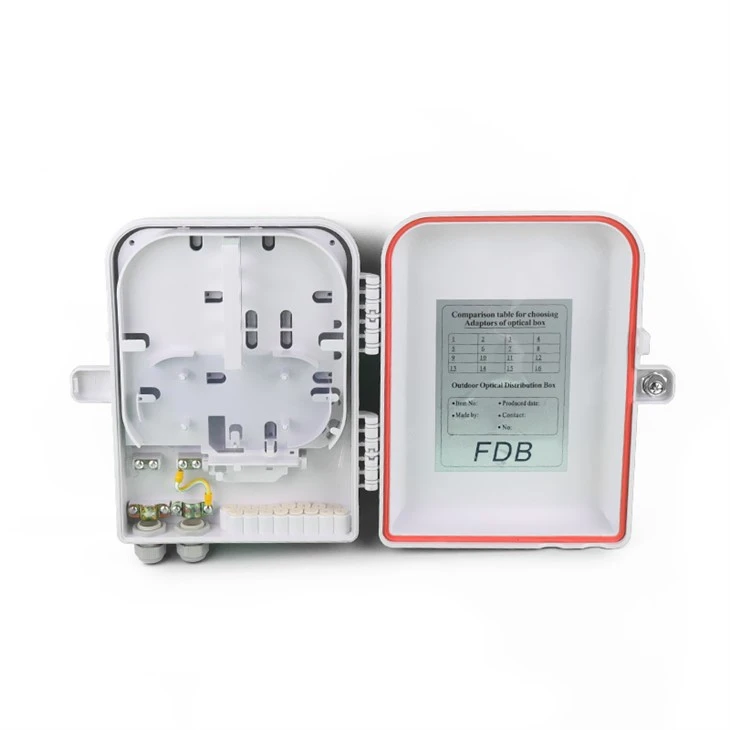

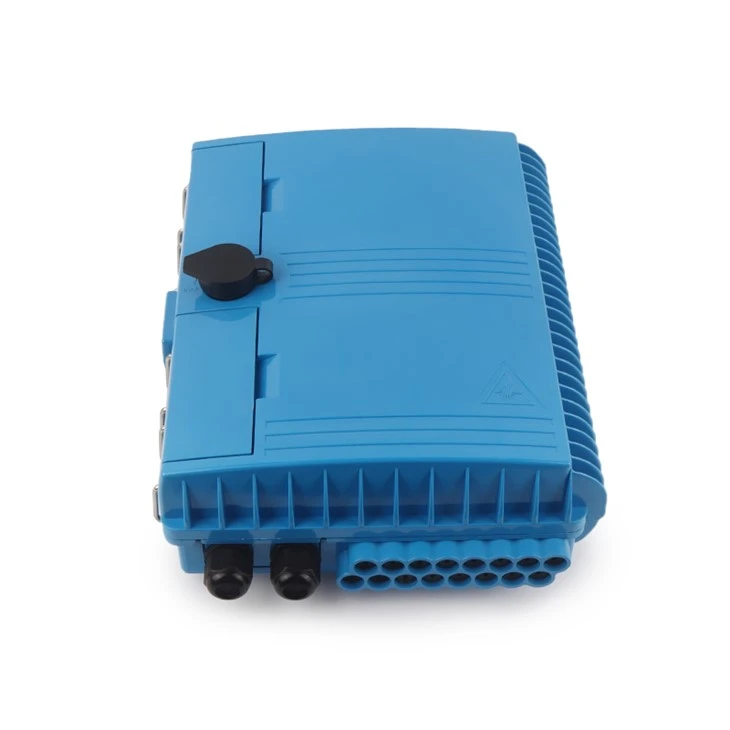

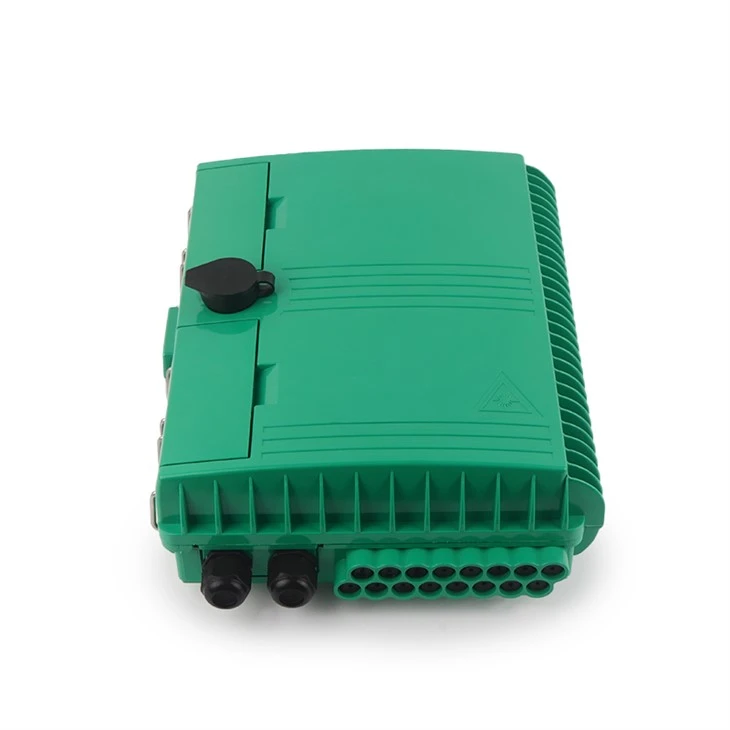

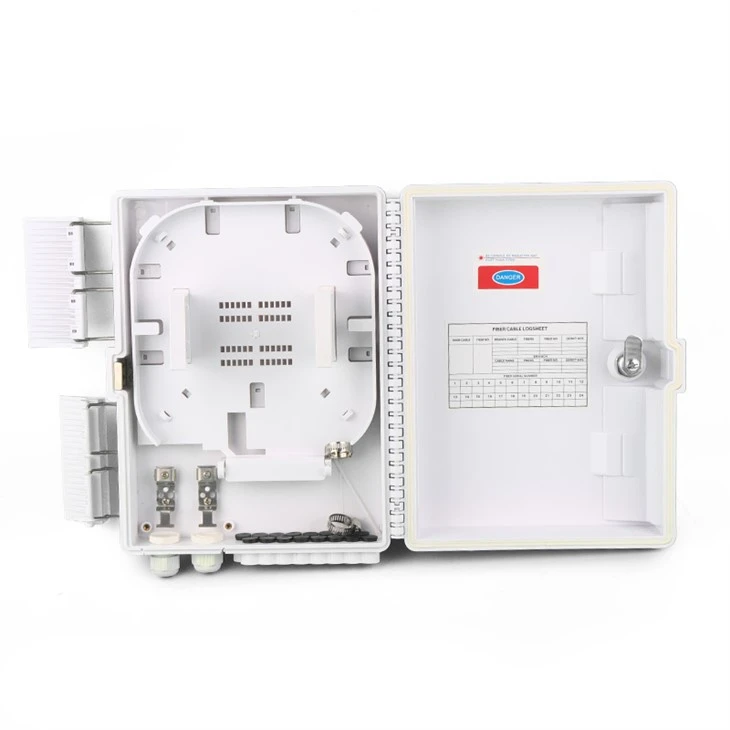

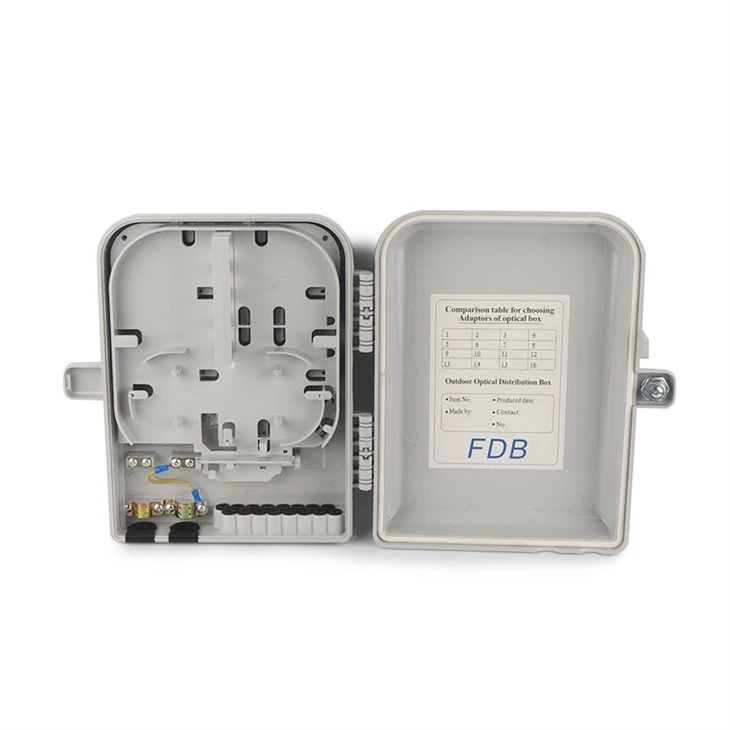

16 Cores Fiber Optic Splitter Box

The 16-core Fiber Optic Splitter Box is made of ABS+PC plastic injection molding. This box is used as the terminal point where the feeder cable is connected with the drop cable in the FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. At the same time, it provides solid protection and management for FTTX network construction.

• Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
• Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
• Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
• Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
• Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
• Fully enclosed structure.
• Material: ABS, moisture-proof, waterproof, dustproof, anti-aging.
• Optical cable, pigtail, jumper line do not interfere with each other, cassette SC adapter installation, easy maintenance.

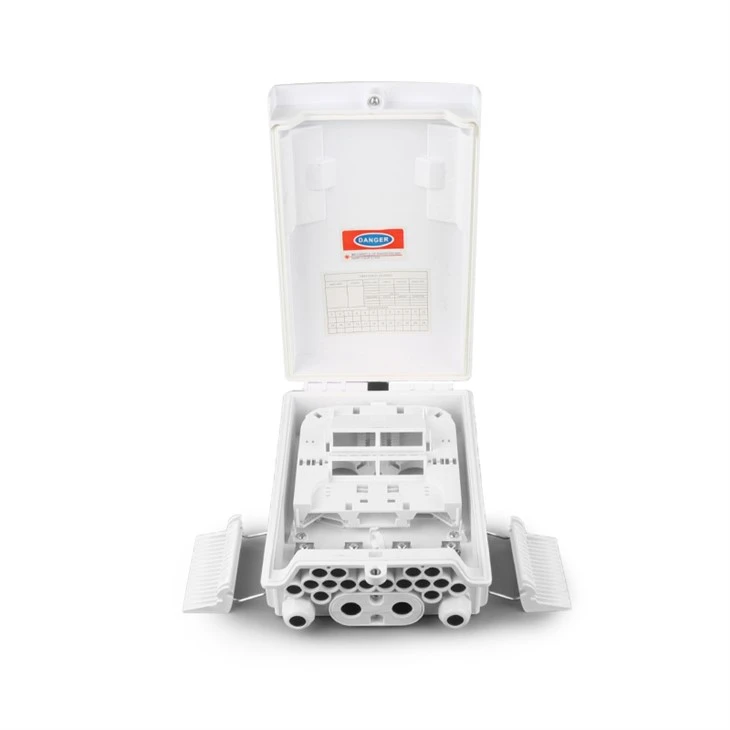

• The switchboard can be turned over, and the feeder cable can be placed by cup-shaped connector, which is convenient for maintenance and installation.

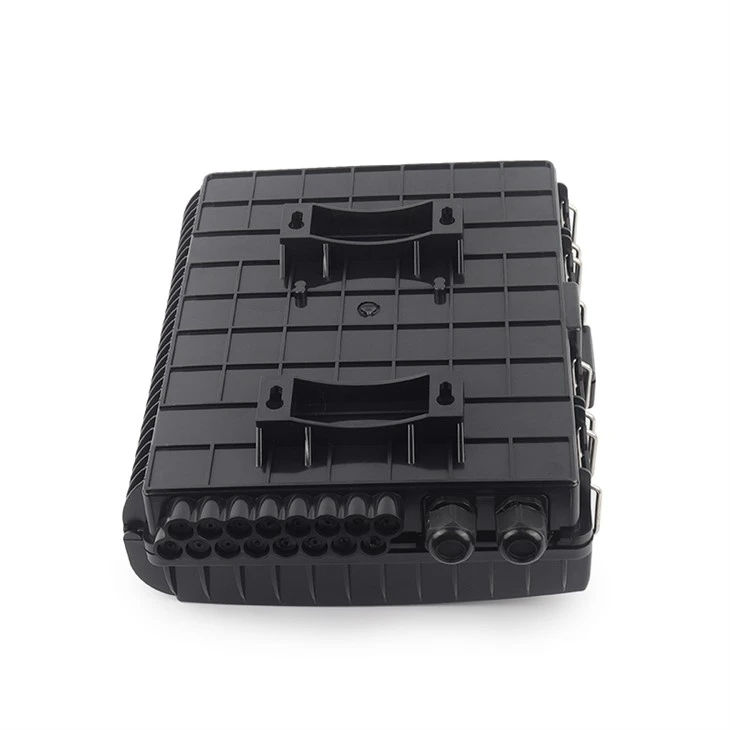

• The box can be wall-mounted or pole mounted, indoor and outdoor can be used.

• Wall mounted and vertical pole mounted.
• FTTH preinstallation and onsite installation.

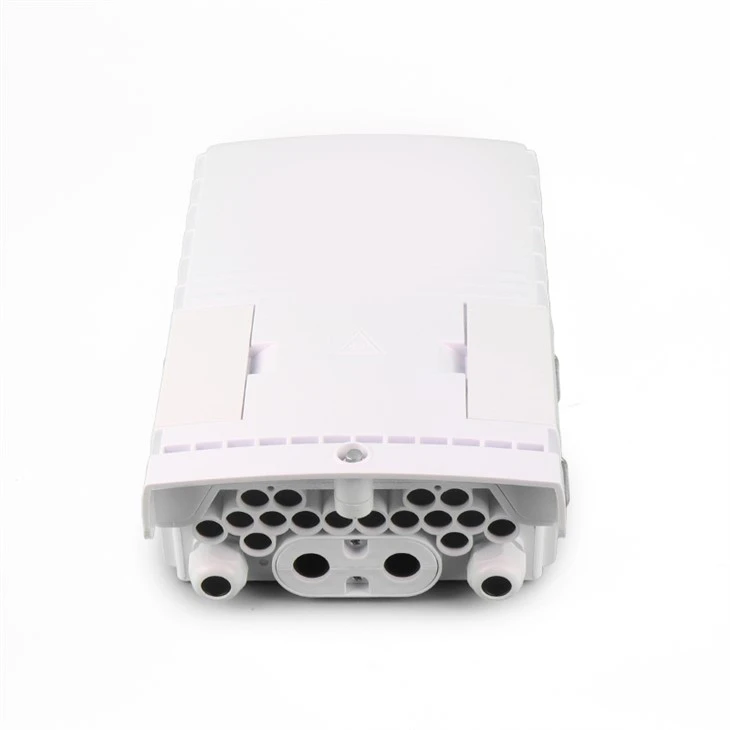

• 5-10mm cable ports for 2x3mm indoor FTTH lead-in cables and outdoor figure-8 FTTH self-supporting lead-in cables.

Use Environment:

Packing List:
