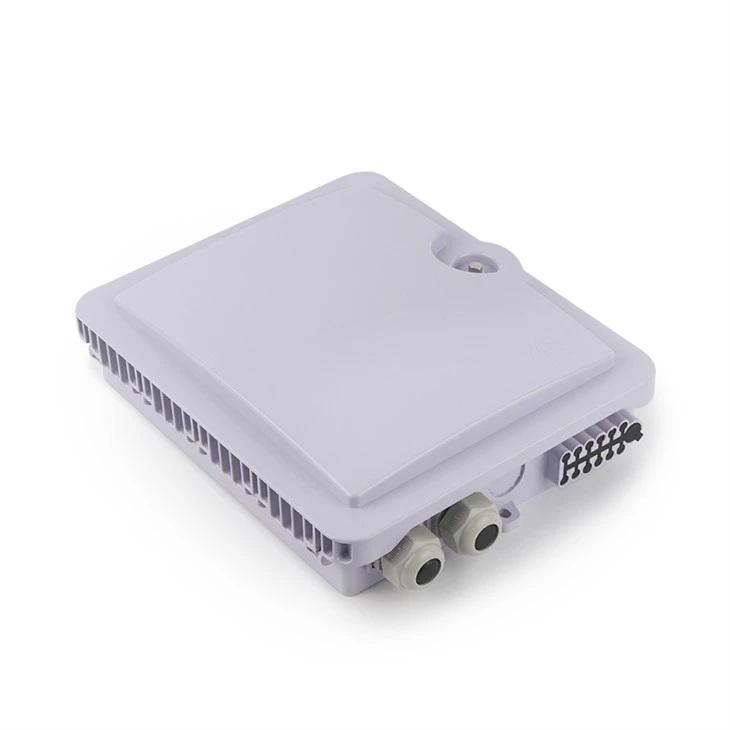

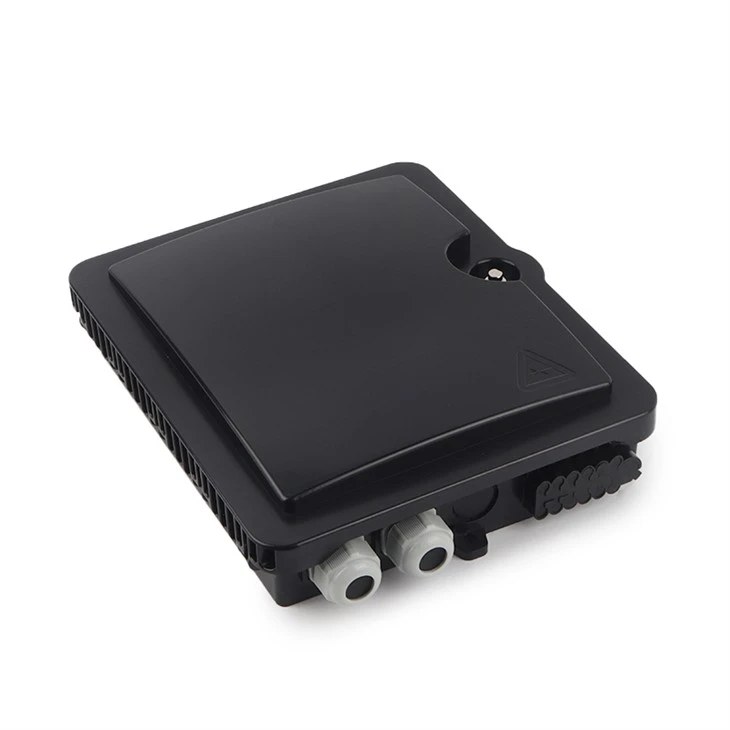

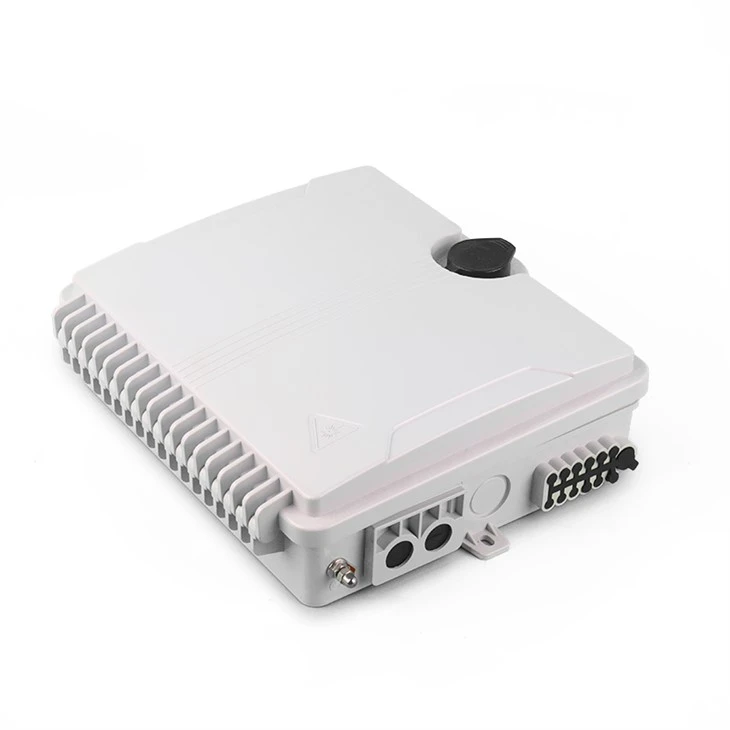

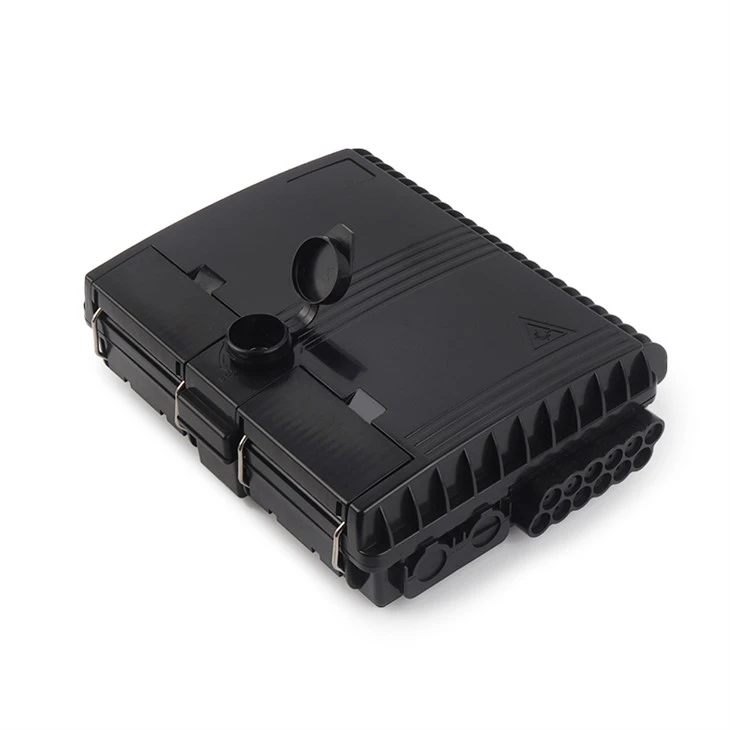

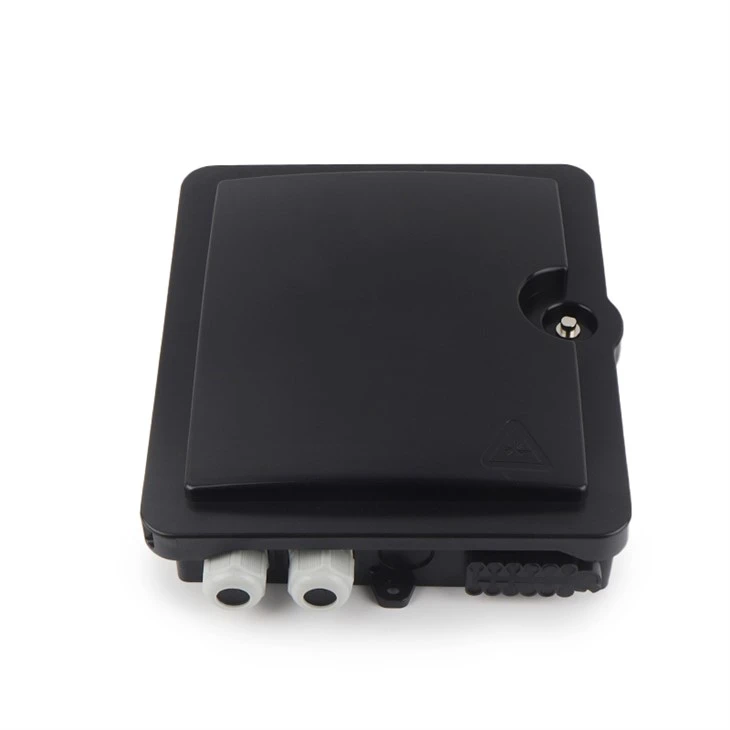

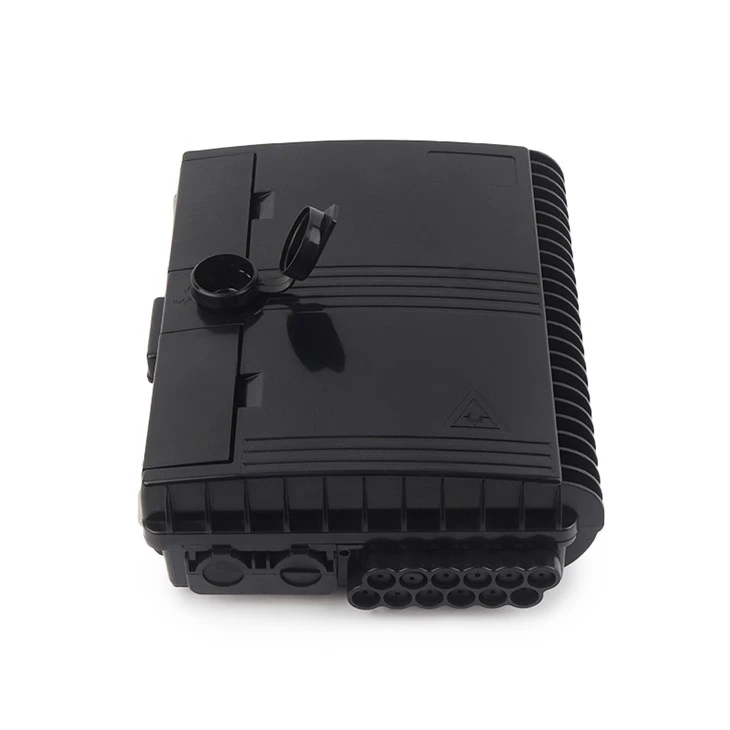

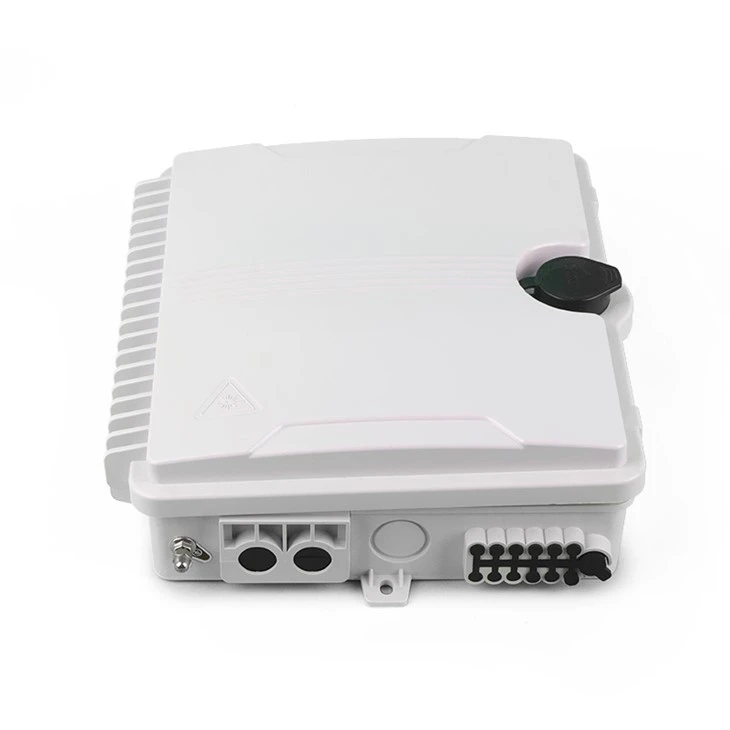

12 Cores Fiber Distribution Box

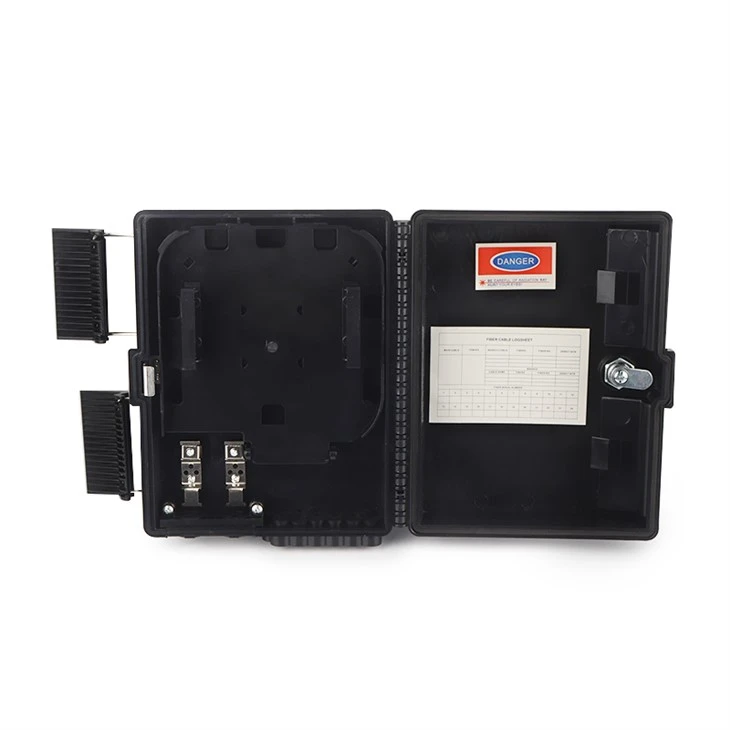

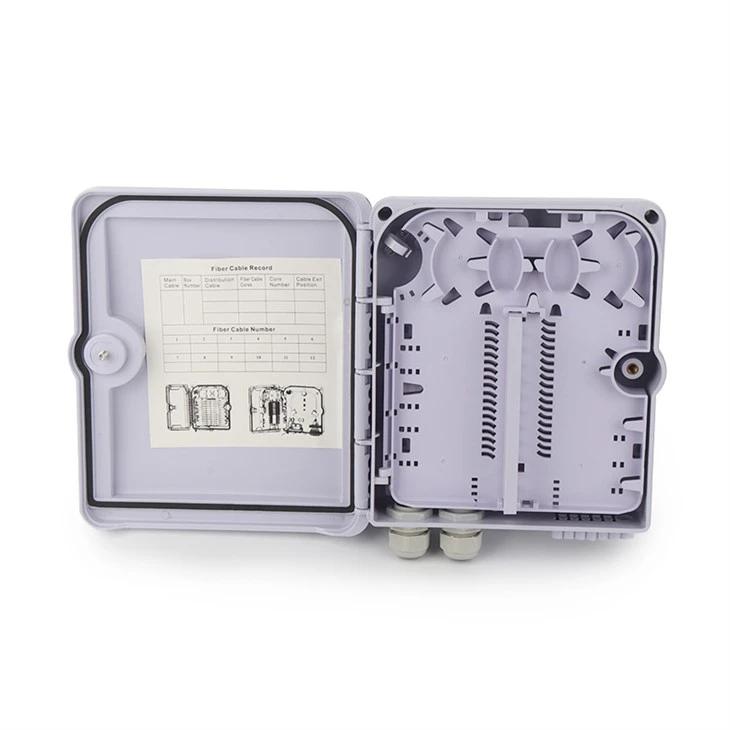

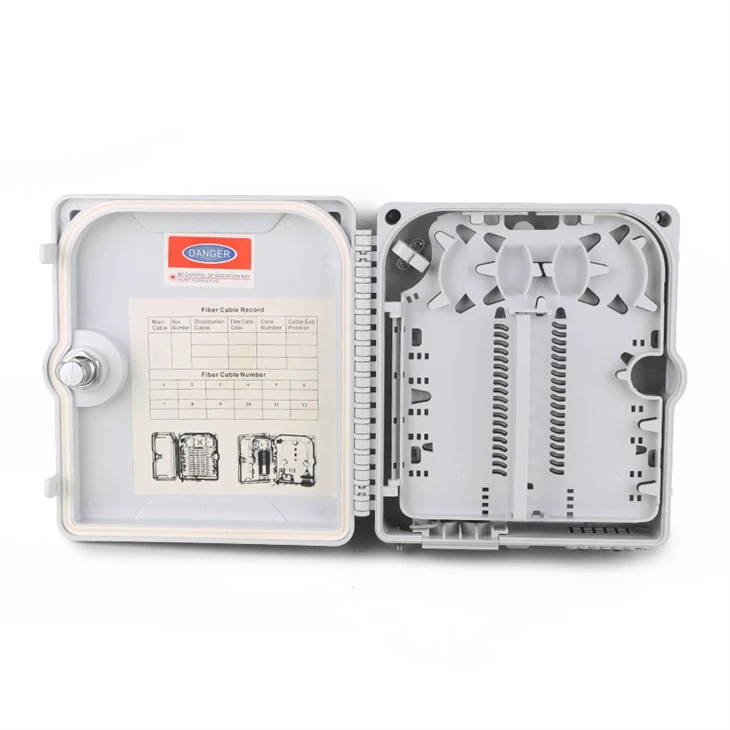

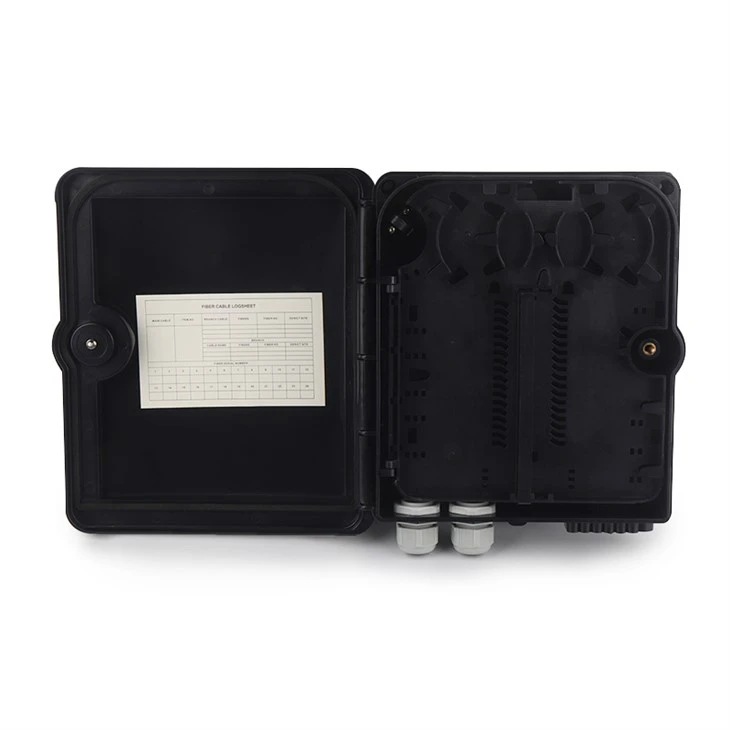

The 12-core fiber distribution box can realize the introduction, fixation, stripping and protection of the distribution optical cable, and connect and terminate with the household optical cable. The equipment lockable IP68 and UV-resistant distribution box is standard and terminates 12 optical fibers in a rugged ABS housing for indoor and outdoor applications. The internal removable pallet provides a simple solution to accommodate 12 SC simplex connections and connectors. The box has 12 jumper exits and up to 2 cable inlets and maintains an IP68 rating.
Features
- Connector insertion loss:≤0.3dB (connection loss : ≤0.5dB)
- Connector return loss:≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
- Insulation resistance between chassis and grounding device:≥1000MΩ/500V (DC)
- Working wavelength:850μm, 1310μm, 1550umμm (depending on the use of optical fiber)
- Withstand voltage between chassis and ground:3000V(DC)/1min (without breakdown or arcing).
Technical Indicators
Use Environment:
|
Working temperature: |
-40℃～+80℃ |
|
Storage temperature: |
-25℃～+55℃ |
|
Relative humidity: |
≤95% (+30℃) |
|
Atmospheric pressure: |
62～101kPa |
Packing List:
|
Specification(mm): |
280*220*95 |
|
Large carton size (CM): |
56*44*50 |
|
Quantity (per box): |
10pcs |
|
Weight (per box): |
16KG |
